IS-2981RH Radiation Hardened 8-Channel Source Driver

only. Intersil Corporation reserves the right to make changes in circuit design and/or specifications at any time without notice. Accordingly, the reader is cautioned to verify that data sheets are current before placing orders. Information furnished by Intersil is believed to be accurate and reliab.

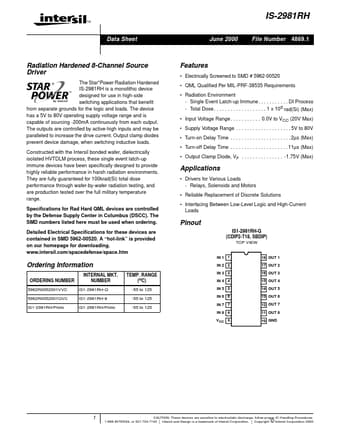

IS-2981RH TM Data Sheet June 2000 File Number 4869.1 Radiation Hardened 8-Channel Source Driver The Star Power Radiation Hardened IS-2981RH is a monolithic device designed for use in high-side switching applications that beneļ¬t from separate grounds for the logic and loads. The device has a 5V to 80V operating supply voltage range and is capable of sourcing -200mA continuously from each output. The outputs are controlled by active-high inputs and may be paralleled to increase the drive .

IS-2981RH Datasheet (68.34 KB)

Preview of IS-2981RH PDF
IS-2981RH Datasheet Preview Page 2

Datasheet Details

Part number:

IS-2981RH

Manufacturer:

Intersil Corporation

File Size:

68.34 KB

Description:

Radiation hardened 8-channel source driver.
