IS82C89

CMOS Bus Arbiter

IS82C89 Features

* Pin Compatible with Bipolar 8289

* Performance Compatible with: - 80C86/80C88 . . . . . . . . . . . . . . . . . . . . . . . . . .(5/8MHz)

* Provides Multi-Master System Bus Control and Arbitration

* Provides Simple Interface with 82C88/8288 Bus Controller

IS82C89 General Description

The Intersil 82C89 Bus Arbiter is manufactured using a selfaligned silicon gate CMOS process (Scaled SAJI IV). This circuit, along with the 82C88 bus controller, provides full bus arbitration and control for multi-processor systems. The 82C89 is typically used in medium to large 80C86 or 80C88 syste.

IS82C89 Datasheet (123.48 KB)

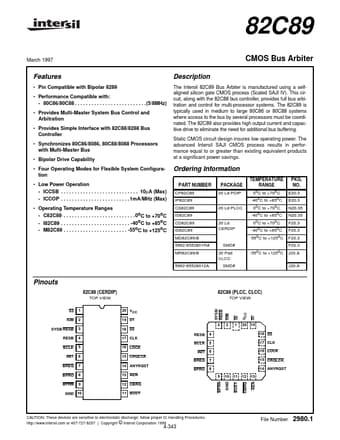

Preview of IS82C89 PDF

Datasheet Details

Part number:

IS82C89

Manufacturer:

Intersil Corporation

File Size:

123.48 KB

Description:

Cmos bus arbiter.
