ISL6565 - Multi-Phase PWM Controller with Precision rDS(ON) or DCR Current Sensing for VR10.X Application

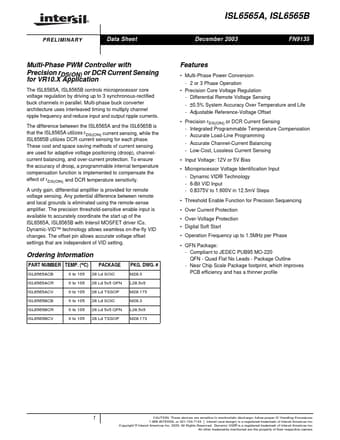

® ISL6565A, ISL6565B Data Sheet December 2003 FN9135 PRELIMINARY Multi-Phase PWM Controller with Precision rDS(ON) or DCR Current Sensing for VR10.X Application The ISL6565A, ISL6565B controls microprocessor core voltage regulation by driving up to 3 synchronous-rectified buck channels in parallel.

Multi-phase buck converter architecture uses interleaved timing to multiply channel ripple frequency and reduce input and output ripple currents.

The difference between the ISL6565A and the ISL6565

ISL6565 Features

* Multi-Phase Power Conversion - 2 or 3 Phase Operation

* Precision Core Voltage Regulation - Differential Remote Voltage Sensing - ±0.5% System Accuracy Over Temperature and Life - Adjustable Reference-Voltage Offset

* Precision rDS(ON) or DCR Current Sensing - Integrated Pr
