ISL6561 - Multi-Phase PWM Controller

ISL6561 Description

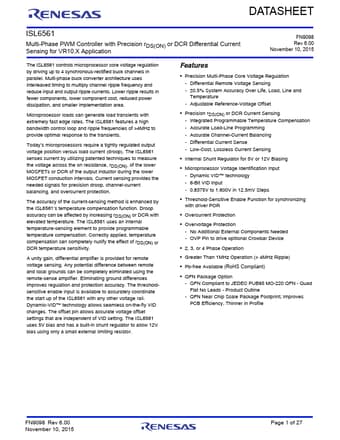

DATASHEET ISL6561 Multi-Phase PWM Controller with Precision rDS(ON) or DCR Differential Current Sensing for VR10.X Application FN9098 Rev 6.00 Novem.

ISL6561 Features

* a high bandwidth control loop and ripple frequencies of >4MHz to provide optimal response to the transients. Today’s microprocessors require a tightly regulated output voltage position versus load current (droop). The ISL6561 senses current by utilizing patented techniques to measure the voltage acr
