ISL6560 Datasheet - Renesas

ISL6560 Microprocessor CORE Voltage Regulator Two-Phase Buck PWM Controller

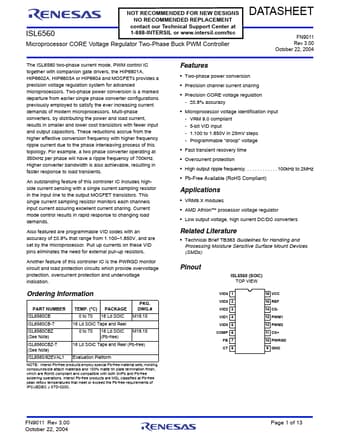

ISL6560 NOT RECOMMENDED FOR NEW DESIGNS NO RECOMMENDED REPLACEMENT contact our Technical Support Center at 1-888-INTERSIL or www.intersil.com/tsc Microprocessor CORE Voltage Regulator Two-Phase Buck PWM Controller DATASHEET FN9011 Rev 3.00 October 22, 2004 The ISL6560 two-phase current mode, PWM control IC together with companion gate drivers, the HIP6601A, HIP6602A, HIP6603A or HIP6604 and MOSFETs provides a precision voltage regulation system for advanced microprocessors. Two-phase power c.

ISL6560 Datasheet (699.62 KB)

Preview of ISL6560 PDF

Datasheet Details

Part number:

ISL6560

Manufacturer:

Renesas ↗

File Size:

699.62 KB

Description:

Microprocessor core voltage regulator two-phase buck pwm controller.
