ISL6565B, ISL6565A Datasheet - Renesas

ISL6565B Multi-Phase PWM Controller

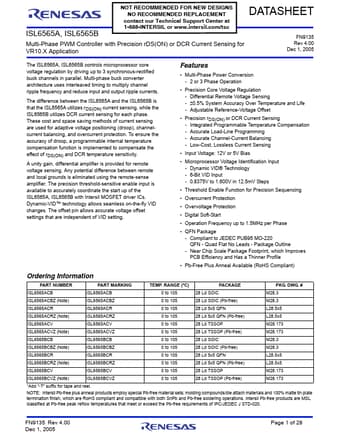

NOT RECOMMENDED FOR NEW DESIGNS NO RECOMMENDED REPLACEMENT DATASHEET contact our Technical Support Center at ISL6565A, ISL6565B 1-888-INTERSIL or www.intersil.com/tsc FN9135 Multi-Phase PWM Controller with Precision rDS(ON) or DCR Current Sensing for Rev 4.00 VR10.X Application Dec 1, 2005 The ISL6565A, ISL6565B controls microprocessor core voltage regulation by driving up to 3 synchronous-rectified buck channels in parallel. Multi-phase buck converter architecture uses interleaved tim.

ISL6565A-Renesas.pdf

This datasheet PDF includes multiple part numbers: ISL6565B, ISL6565A. Please refer to the document for exact specifications by model.
ISL6565B Datasheet Preview Page 2 ISL6565B Datasheet Preview Page 3

Datasheet Details

Part number:

ISL6565B, ISL6565A

Manufacturer:

Renesas ↗

File Size:

1.25 MB

Description:

Multi-phase pwm controller.

Note:

This datasheet PDF includes multiple part numbers: ISL6565B, ISL6565A.
Please refer to the document for exact specifications by model.
