ITF87008DQT - 7.0A/ 20V/ 0.023 Ohm/ Dual N-Channel/ 2.5V Specified Power MOSFET

Intersil Corporation

ITF87008DQT Description

ITF87008DQT Data Sheet March 2000 File Number 4814.2 7.0A, 20V, 0.023 Ohm, Dual N-Channel, 2.5V Speciﬁed Power MOSFET Packaging TSSOP-8 .

ITF87008DQT Features

* Ultra Low On-Resistance - rDS(ON) = 0.023Ω, VGS = 4.5V - rDS(ON) = 0.024Ω, VGS = 4.0V - rDS(ON) = 0.029Ω, VGS = 2.5V
* 2.5 Volt Gate Drive Capability
* Gate to Source Protection Diode
* Simulation Models - Temperature Compensated PSPICE™ and SABER Electrical Models

📥 Download Datasheet

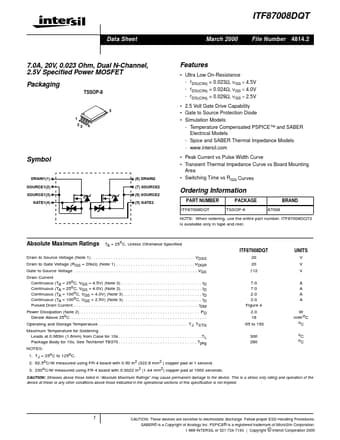

ITF87008DQT Datasheet Preview — Preview of ITF87008DQT PDF

Datasheet Details

Part number: ITF87008DQT
Manufacturer: Intersil Corporation
File Size: 203.39 KB
Datasheet: ITF87008DQT_IntersilCorporation.pdf
Description: 7.0A/ 20V/ 0.023 Ohm/ Dual N-Channel/ 2.5V Specified Power MOSFET
