RFG30P05 - P-Channel Power MOSFET

Intersil Corporation

📥 Download Datasheet

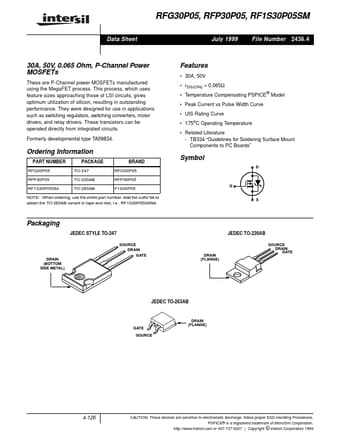

RFG30P05 Datasheet Preview — Preview of RFG30P05 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	RFG30P05
Manufacturer	Intersil Corporation
File Size	70.90 KB
Description	P-Channel Power MOSFET
Datasheet	RFG30P05_IntersilCorporation.pdf

RFG30P05 Product details

Features

30A, 50V.
rDS(ON) = 0.065Ω.
Temperature Compensating PSPICE® Model.
Peak Current vs Pulse Width Curve.
UIS Rating Curve.
175oC Operating Temperature.
Related Literature - TB334 “Guidelines for Soldering Surface Mount Components to PC Boards” Ordering Information PART NUMBER RFG30P05 RFP30P05 RF1S30P05SM.
