RFG30P06

P-Channel Power MOSFET

RFG30P06 Features

* 30A, 60V

* rDS(ON) = 0.065Ω

* Temperature Compensating PSPICE® Model

* Peak Current vs Pulse Width Curve

* UIS Rating Curve

* 175oC Operating Temperature

* Related Literature - TB334 “Guidelines for Soldering Surface Mount Components to PC Bo

RFG30P06 Datasheet (71.16 KB)

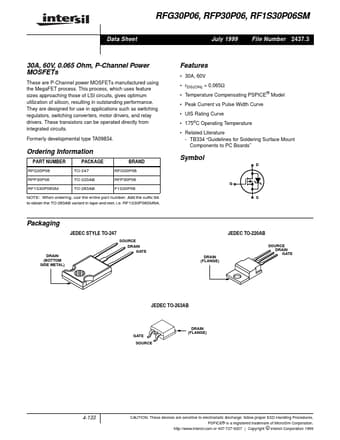

Preview of RFG30P06 PDF

Datasheet Details

Part number:

RFG30P06

Manufacturer:

Intersil Corporation

File Size:

71.16 KB

Description:

P-channel power mosfet.
RFG30P06, RFP30P06, RF1S30P06SM Data Sheet July 1999 File Number 2437.3 30A, 60V, 0.065 Ohm, P-Channel Power MOSFETs These are P-Channel power MOSFET.
