RFG40N10LE Datasheet, Mosfet, Intersil Corporation

RFG40N10LE Features

  • Mosfet
  • 40A, 100V
  • rDS(ON) = 0.040Ω
  • Temperature Compensating PSPICE® Model
  • Peak Current vs Pulse Width Curve
  • UIS Rating Curve
  • 175oC Op

PDF File Details

Part number:

RFG40N10LE

Manufacturer:

Intersil Corporation

File Size:

413.07kb

Download:

📄 Datasheet

Description:

N-channel power mosfet.

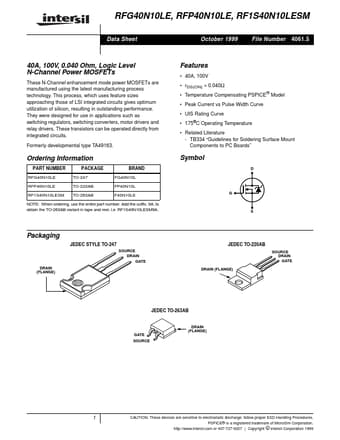

Datasheet Preview: RFG40N10LE 📥 Download PDF (413.07kb)
Page 2 of RFG40N10LE Page 3 of RFG40N10LE

RFG40N10LE Application

  • Applications such as switching regulators, switching converters, motor drivers and relay drivers. These transistors can be operated directly from in
