RFG50N05 Datasheet, Mosfet, Intersil Corporation

RFG50N05 Features

  • Mosfet
  • 50A, 50V
  • rDS(ON) = 0.022Ω
  • UIS Rating Curve (Single Pulse)
  • 175oC Operating Temperature Symbol D Ordering Information PART NUMBER RFG50N05 RFP50N

PDF File Details

Part number:

RFG50N05

Manufacturer:

Intersil Corporation

File Size:

47.35kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. only. Intersil Corporation reserves the right to make changes in circuit design and/or specifications at any time without notice. Acc

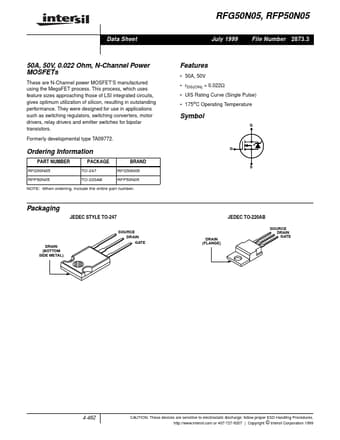

Datasheet Preview: RFG50N05 📥 Download PDF (47.35kb)
Page 2 of RFG50N05 Page 3 of RFG50N05

RFG50N05 Application

  • Applications such as switching regulators, switching converters, motor drivers, relay drivers and emitter switches for bipolar transistors. Formerly
