ISL3298EMRTEP - Low Power RS-485/RS-422 Transmitter

Product Overview

Intersil

Datasheet Details

Part number	ISL3298EMRTEP
Manufacturer	Intersil
File Size	412.61 KB
Description	Low Power RS-485/RS-422 Transmitter
Datasheet	ISL3298EMRTEP Datasheet

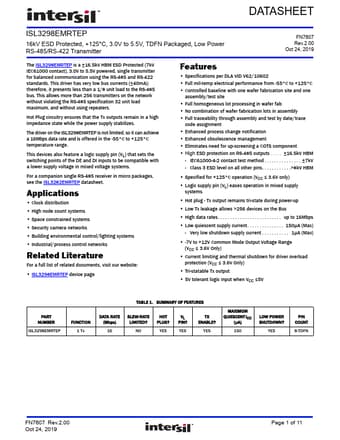

Additional preview pages of the ISL3298EMRTEP datasheet.

Product details

Description

Pin Configuration 8 LD TDFN TOP VIEW VL 1 DE 2 DI 3 GND 4 D 8 VCC 7Z 6Y 5 GND PIN NUMBER 1 2 3 4, 5 6 7 8 PIN SYMBOL FUNCTION VL Logic-Level supply which sets the VIL/VIH levels for the DI and DE pins.Power-up this supply after VCC, and keep VL ≤VCC.DE Driver output enable.The driver outputs, Y and Z, are enabled by bringing DE high, and are high impedance when DE is low.If the driver enable function isn’t needed, connect DE to VCC (or VL) through a 1kΩ to 3kΩ resistor.DI Driver in

Features

Specifications per DLA VID V62/10602.
Full mil-temp electrical performance from -55°C to +125°C.
Controlled baseline with one wafer fabrication site and one assembly/test site.
Full homogeneous lot processing in wafer fab.
No combination of wafer fabrication lots in assembly.
Full traceability through assembly and test by date/trace code assignment.
Enhanced process change notification.
Enhanced obsolescence management.
