ISL32173E - Quad Receivers

ISL32173E Description

DATASHEET ISL32173E, ISL32177E, ISL32273E, ISL32275E, ISL32277E Quad, ±16.5kV ESD Protected, 3.0V to 5.5V, RS-485/RS-422 Receivers FN7529 Rev.5.02 A.

ISL32173E Features

* IEC61000 ESD protection (RS-485 inputs)
* . . . ±16.5kV - Class 3 ESD on all other pins
* . >8kV HBM
* Wide supply range
* 3.0V to 5.5V
* Wide common-mode range
* . . -7V to +1

ISL32173E Applications

* Telecom equipment
* Motor controllers/encoders
* Programmable logic controllers
* Industrial/process control networks RECEIVER OUTPUT (V) RECEIVER INPUT (V) VCC = 3.3V, +25°C # of DEVICES = 270 1 0 A-B -1 80Mbps VCC = 3.3V FREQUENCY 9.67 9.80 9.92 10.04 10.17

📥 Download Datasheet

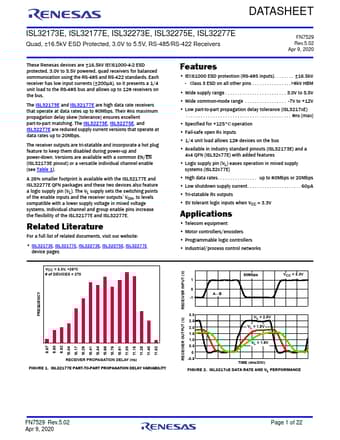

Preview of ISL32173E PDF
datasheet Preview Page 2 datasheet Preview Page 3
