ISL644 High Voltage ORing MOSFET Controller

TSSOP PIN # 1 2 3 8 9 14 15 16 4, 5, 6, 7, 10, 11, 12, 13 QFN PIN # 19 1 2 7 9 SYMBOL FUNCTION GATE External FET Gate Drive VIN Power Supply Connection HVREF Chip High Voltage Reference GND Chip Ground Reference FAULT Fault Output 13 14 15 3, 4, 5, 6, 8, 10, 11, 12, 16, 17, 18, 20 VSET C.

Data Sheet October 6, 2011 ISL6144 FN9131.7 High Voltage ORing MOSFET Controller The ISL6144 ORing MOSFET Controller and a suitably sized N-Channel power MOSFET(s) increases power distribution efficiency and availability when replacing a power ORing diode in high current applications. In a multiple supply, fault tolerant, redundant power distribution system, paralleled similar power supplies contribute equally to the load current through various power sharing schemes. Regardless of the scheme.

ISL644 Features

* Wide Supply Voltage Range +9V to +75V

* Transient Rating to +100V

* Reverse Current Fault Isolation

* Internal Charge Pump Allows the use of N-Channel MOSFET

* HS Comparator Provides Very Fast

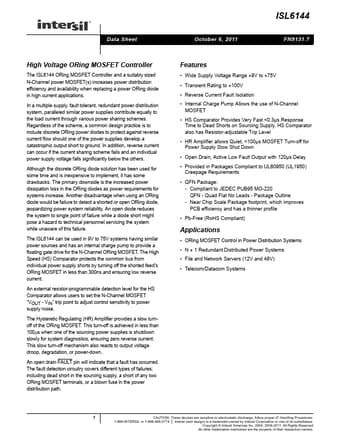

ISL644 Datasheet (0.98 MB)
