DATASHEET ISL6440 300kHz Dual, 180° Out-of-Phase, Step-Down PWM Controller FN9040 Rev 2.00 Oct 4, 2005 The ISL6440 is a high-performance, dual-output PWM controller optimized for converting wall adapter, battery or network intermediate bus DC input supplies into the system supply voltages required for a wide variety of applications.

Each output is adjustable down to 0.8V.

The two PWMs are synchronized 180o out of phase reducing the RMS input current and ripple voltage.

The ISL6440 incorporate

ISL6440 Features

* An adjustable overcurrent protection circuit monitors the output current by sensing the voltage drop across the lower MOSFET. Hiccup mode overcurrent operation protects the DC/DC components from damage during output overload/short circuit conditions. Each PWM has an independent logic-level shutdown

ISL6440-Renesas.pdf

Preview of ISL6440 PDF

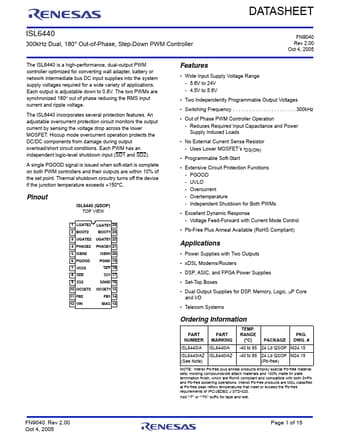

ISL6440 Datasheet Preview Page 2 ISL6440 Datasheet Preview Page 3
