DATASHEET ISL6441 1.4MHz Dual, 180° Out-of-Phase, Step-Down PWM and Single Linear Controller FN9197 Rev 3.00 May 26, 2009 The ISL6441 is a high-performance, triple-output controller optimized for converting wall adapter, battery or network intermediate bus DC input supplies into the system supply voltages required for a wide variety of applications.

Each output is adjustable down to 0.8V.

The two PWMs are synchronized 180° out-of-phase reducing the RMS input current and ripple voltage.

The IS

ISL6441 Features

* An adjustable overcurrent protection circuit monitors the output current by sensing the voltage drop across the lower MOSFET. Hiccup mode overcurrent operation protects the DC/DC components from damage during output overload/short circuit conditions. Each PWM has an independent logic-level shutdown

ISL6441-Renesas.pdf

Preview of ISL6441 PDF

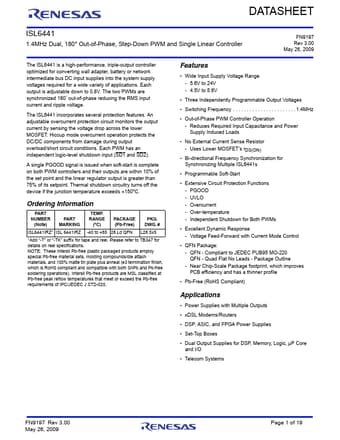

ISL6441 Datasheet Preview Page 2 ISL6441 Datasheet Preview Page 3

Datasheet Details

Part number:

ISL6441

Manufacturer:

Renesas ↗

File Size:

831.96 KB

Description:

Step-down pwm and single linear controller.
