ISL70218SRH - Low-Power Operational Amplifiers

ISL70218SRH Description

DATASHEET ISL70218SEH, ISL70218SRH Radiation Hardened Dual 36V Precision Single-Supply, Rail-to-Rail Output, Low-Power Operational Amplifiers FN7957.
PIN NUMBER 1 2 3 4, 6 5 7 8 9 10 PIN NAME OUT_A -IN_A +IN_A NC V+IN_B -IN_B OUT_B V+ V+ IN- IN+ CIRCUIT 1 V- EQUIVALENT CIRCUIT Circuit 2 Circu.

ISL70218SRH Features

* DLA SMD# 5962-12222 (ISL70218SEH Only)
* Wide single and dual supply range
* . 3V to 42V, Abs. Max.
* Low current consumption
* . .850µA, typical
* Low input offset voltage
* 40µV, typical
* Ra

📥 Download Datasheet

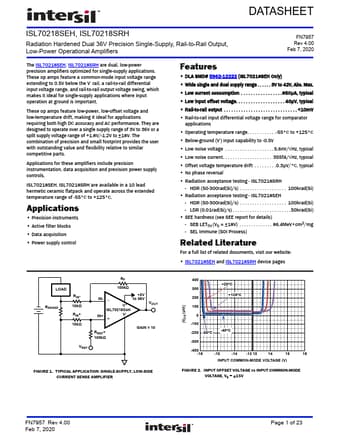

Preview of ISL70218SRH PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ISL70218SRH
Manufacturer
Intersil
File Size
902.55 KB
Datasheet
ISL70218SRH_Intersil.pdf
Description
Low-Power Operational Amplifiers
