ISL70001SRH - Radiation Hardened and SEE Hardened 6A Synchronous Buck Regulator

Description

.

.

.

Features

  • ±1% reference voltage over line, load, temperature and radiation.
  • Current mode control for excellent dynamic response.
  • Full Mil-temp range operation (TA = -55°C to +125°C).
  • High efficiency >90%.
  • Fixed 1MHz operating frequency.
  • Available in a thermally enhanced heatsink package - R48.B.
  • Operates from 3V to 5.5V supply.
  • Adjustable output voltage - Two external resistors set VOUT from 0.8V to ~85% of VIN.
  • Bidir.

📥 Download Datasheet

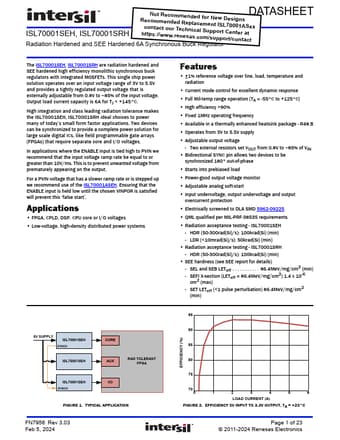

Datasheet preview – ISL70001SRH

Datasheet Details

Part number ISL70001SRH
Manufacturer Intersil Corporation
File Size 655.62 KB
Description Radiation Hardened and SEE Hardened 6A Synchronous Buck Regulator
Datasheet download datasheet ISL70001SRH Datasheet
Additional preview pages of the ISL70001SRH datasheet.

📁 Similar Datasheet

  • ISL70001SEH - Radiation Hardened and SEE Hardened 6A Synchronous Buck Regulator (Intersil)
  • ISL70001ASEH - Rad Hard and SEE Hard 6A Synchronous Buck Regulator (Intersil)
  • ISL70002SEH - Radiation Hardened and SEE Hardened 12A Synchronous Buck Regulator (Intersil)
  • ISL70003ASEH - 9A Buck Regulator (Intersil)
  • ISL70003SEH - 6A Buck Regulator (Intersil)
  • ISL70005SEH - Radiation Hardened Dual Output 3A Synchronous Buck and LDO Regulator (Intersil)
  • ISL70020SEH - 65A Enhancement Mode GaN Power Transistors (Intersil)
  • ISL70023SEH - 60A Enhancement Mode GaN Power Transistor (Intersil)
  • ISL70024SEH - 7.5A Enhancement Mode GaN Power Transistor (Intersil)
  • ISL70040SEH - Radiation Hardened Low-Side GaN FET Driver (Intersil)
Other Datasheets by Intersil Corporation
  • ISL71090SEHF25 - Radiation Hardened Ultra Low Noise / Precision Voltage Reference
  • ISL7119RH - Radiation Hardened High Speed Dual Voltage Comparator
  • ISL7124SRH - Quad Operational Amplifiers
  • ISL72026SEH - 3.3V Radiation Tolerant CAN Transceiver
  • ISL72027SEH - 3.3V Radiation Tolerant CAN Transceiver
  • ISL72028SEH - 3.3V Radiation Tolerant CAN Transceiver
  • ISL72991RH - Radiation Hardened Negative Low Dropout Adjustable Voltage Regulator
  • ISL73096RH - Radiation Hardened Ultra High Frequency NPN/PNP Transistor

Full PDF Text Transcription

Click to expand full text
DATASHEET ISL70001SEH, ISL70001SRH Radiation Hardened and SEE Hardened 6ARhcetStocpyNonsnomt:ca/t/hmcwRtreoweonncwudoor.emruTedsemnRcBeehesunnpacdilskcae.accdRleofeSmmogure/upsNnlupatepotIwoSprtrLoDC7rete0/sc0niog0ten1nrAtsaaSctxt x The ISL70001SEH, ISL70001SRH are radiation hardened and SEE hardened high efficiency monolithic synchronous buck regulators with integrated MOSFETs. This single chip power solution operates over an input voltage range of 3V to 5.5V and provides a tightly regulated output voltage that is externally adjustable from 0.8V to ~85% of the input voltage. Output load current capacity is 6A for TJ < +145°C. High integration and class leading radiation tolerance makes the ISL70001SEH, ISL70001SRH ideal choices to power many of today’s small form factor applications.
