ISL71091SEH20 - 2.048V Radiation Hardened Ultra Low Noise / Precision Voltage Reference

Product Overview

Intersil

Datasheet Details

Part number	ISL71091SEH20
Manufacturer	Intersil
File Size	1.27 MB
Description	2.048V Radiation Hardened Ultra Low Noise / Precision Voltage Reference
Datasheet	ISL71091SEH20 Datasheet

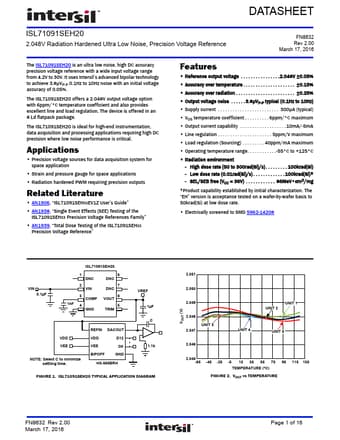

Additional preview pages of the ISL71091SEH20 datasheet.

Product details

Description

PIN NUMBER 1, 7, 8 2 3 4 5 6 PIN NAME DNC VIN COMP GND TRIM VOUT ESD CIRCUIT 3 1 2 1 2 2 DESCRIPTION Do not connect.Internally terminated.Input voltage connection.Compensation and noise reduction capacitor.Ground connection.Also connected to the lid.Voltage reference trim input.Voltage reference output.VDD VDD VDD CAPACITIVELY TRIGGER CLAMP PIN NC GND ESD CIRCUIT 1 GND ESD CIRCUIT 2 ESD CIRCUIT 3

Features

Reference output voltage.
.2.048V ±0.05%.
Accuracy over temperature.
. ±0.15%.
Accuracy over radiation.
. . . . ±0.25%.
Output voltage noise.
. 3.8µVP-P typical (0.1Hz to 10Hz).
Supply current.
300µA (typical).
VOS temperature coefficient.
6ppm/°C maximum.
Output current.
