ISL71090SEH12 - Radiation Hardened Ultra Low Noise / Precision Voltage Reference

Product Overview

intersil

Datasheet Details

Part number	ISL71090SEH12
Manufacturer	intersil
File Size	592.12 KB
Description	Radiation Hardened Ultra Low Noise / Precision Voltage Reference
Datasheet	ISL71090SEH12 Datasheet

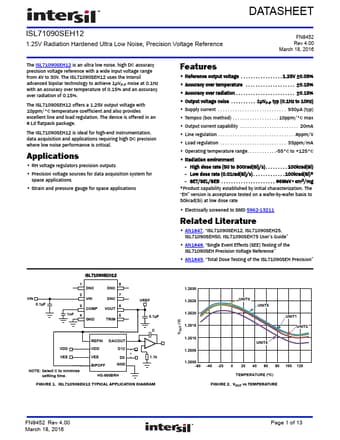

Additional preview pages of the ISL71090SEH12 datasheet.

Product details

Description

http://www.DataSheet4U.com/ PIN NUMBER 1, 7, 8 2 3 4 5 6 PIN NAME DNC VIN COMP GND TRIM VOUT ESD CIRCUIT 3 1 2 1 2 2 DESCRIPTION Do not Connect.Internally terminated.Input Voltage Connection Compensation and Noise Reduction Capacitor Ground Connection.Also connected to the lid.Voltage Reference Trim input Voltage Reference Output VDD VDD VDD CAPACITIVELY TRIGGERED CLAMP PIN GND GND ESD CIRCUIT 1 ESD CIRCUIT 2 DNC ESD CIRCUIT 3 2 FN8452.0 June 26, 2013 ISL71090SEH12 Functional

Features

Reference output voltage.
. . 1.25V ±0.05%.
Accuracy over temperature and radiation.
. . . . . ±0.15%.
Output voltage noise.
1µVP-P Typ (0.1Hz to 10Hz).
Supply current.
. . . 930µA (Typ).
Tempco (box method).
. . . . 10ppm/°C Max.
Output current capability.
. . . . 20mA.
Line regu.
