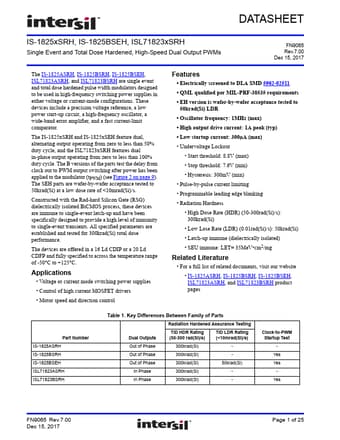

DATASHEET IS-1825xSRH, IS-1825BSEH, ISL71823xSRH Single Event and Total Dose Hardened, High-Speed Dual Output PWMs FN9065 Rev.7.00 Dec 15, 2017 The IS-1825ASRH, IS-1825BSRH, IS-1825BSEH, ISL71823ASRH, and ISL71823BSRH are single event and total dose hardened pulse width modulators designed to be used in high-frequency switching power supplies in either voltage or current-mode configurations.

These devices include a precision voltage reference, a low power start-up circuit, a high-frequency os

ISL71823ASRH Features

* dual in-phase output operating from zero to less than 100% duty cycle. The B versions of the parts test the delay from clock out to PWM output switching after power has been applied to the modulator (tPWM) (see Figure 2 on page 9). The SEH parts are wafer-by-wafer acceptance test

ISL71823ASRH_Intersil.pdf

Preview of ISL71823ASRH PDF
ISL71823ASRH Datasheet Preview Page 2 ISL71823ASRH Datasheet Preview Page 3

Datasheet Details

Part number:

ISL71823ASRH

Manufacturer:

Intersil

File Size:

467.70 KB

Description:

High-speed dual output pwms.
