ISL73141SEH - Radiation Hardened 14-Bit 1MSPS SAR ADC

ISL73141SEH Description

ISL73141SEH Radiation Hardened 14-Bit 1MSPS SAR ADC Datasheet INL LSB) Amplitude (dBFS) The ISL73141SEH is a radiation hardened high precision 14-b.
4 3.

ISL73141SEH Features

* SNR of 82.1dBFS and dissipates only 60mW when operating from a 5V supply. With a 3.3V supply, the ISL73141SEH operates at 750ksps with a power consumption of 28mW. The product features 1Msps throughput with no data latency and features excellent linearity and dynamic accuracy. The ISL73141SEH provid

ISL73141SEH Applications

* ▪ Precision signal processing in satellite payloads ▪ Satellite telemetry systems ▪ Satellite propulsion and orbit control ▪ Attitude control of satellites ▪ High-end industrial ▪ Down-hole drilling 1.0 0.5 0.0 -0.5 -1.0 0 2048 4096 6144 8192 10240 12288 14336 16384 Output Code Figure 1. INL

📥 Download Datasheet

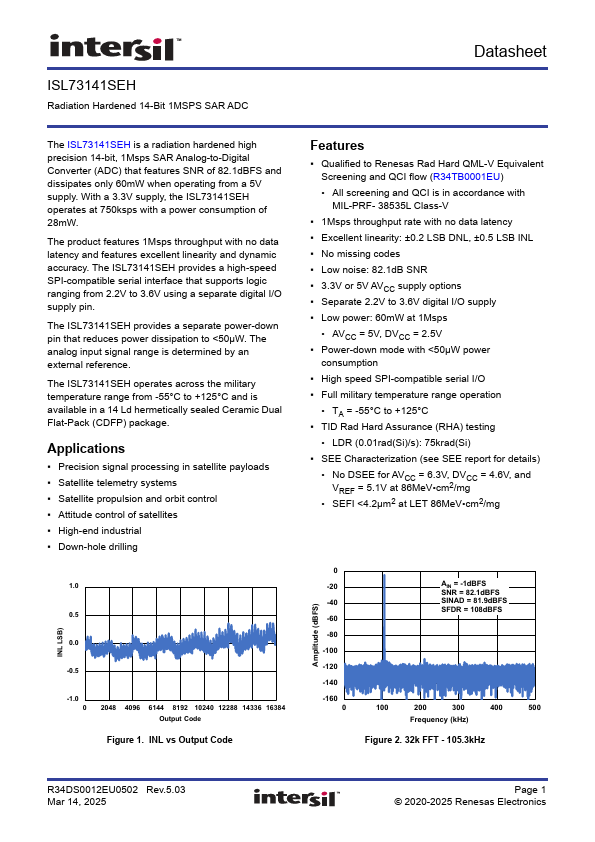

Preview of ISL73141SEH PDF

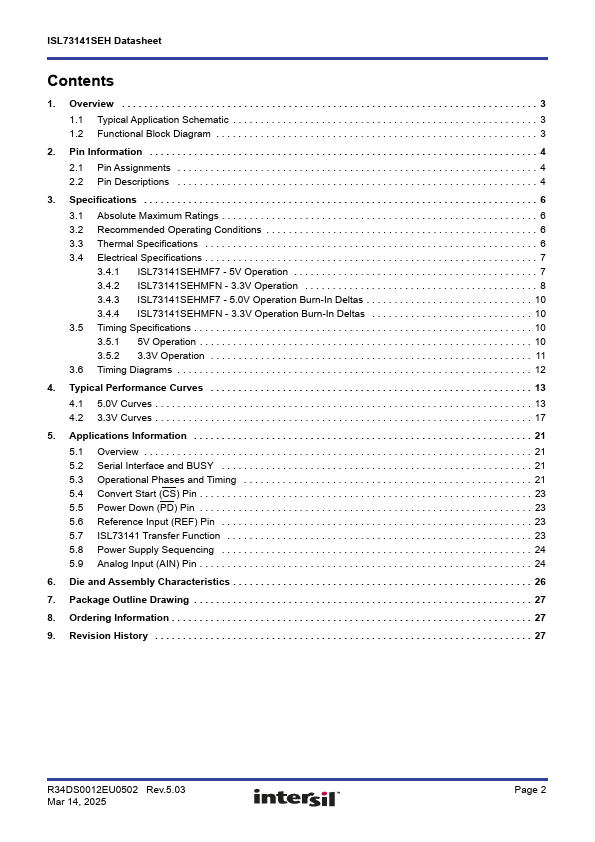

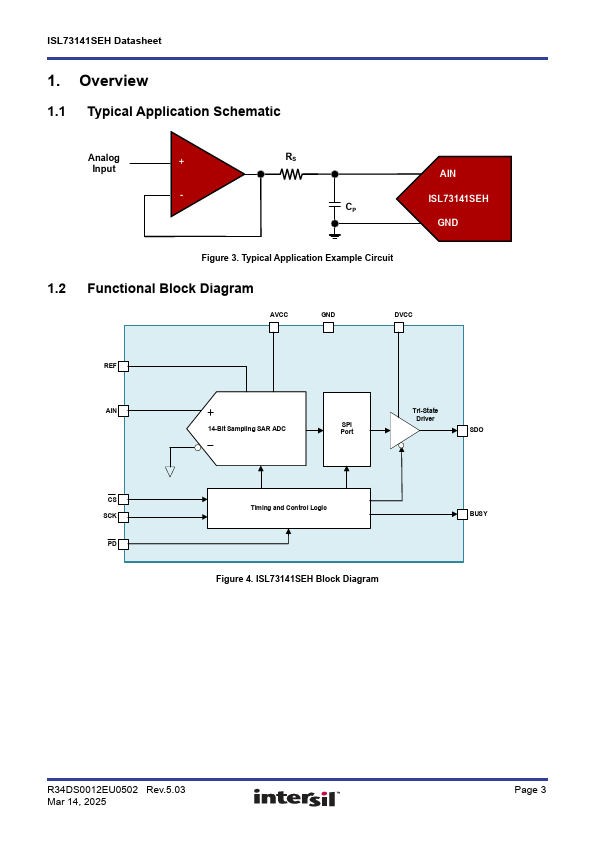

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ISL73141SEH
Manufacturer
Intersil
File Size
1.30 MB
Datasheet
ISL73141SEH-Intersil.pdf
Description
Radiation Hardened 14-Bit 1MSPS SAR ADC
