Datasheet ISL70100SEH, ISL73100SEH Radiation Hardened 40V Current Sense Amplifiers The ISL70100SEH and ISL73100SEH are radiation hardened 40V current sense amplifiers built on the Renesas proprietary PR40 SOI process.

These devices have a wide power supply range of 2.7V to 40V.

The input common-mode voltage is independent of the supply voltage and extends from -0.3V to 40.0V, making them ideal to use in both high-side and low-side applications.

The ISL70100SEH and ISL73100SEH are trans-conduct

ISL73100SEH Features

* Power supply range: 2.7V to 40V

* Input common-mode range: -0.3V to 40V

* Transconductance: 2µA/mV (typical) ○ ±1% accuracy (TA = 25°C) ○ ±1.5% accuracy (TA = -55°C, 125°C)

* Voltage offset: 10µV (typical), V+ = 12V

* Adjustable gain with a single resistor

ISL70100SEH-Intersil.pdf

This datasheet PDF includes multiple part numbers: ISL73100SEH, ISL70100SEH. Please refer to the document for exact specifications by model.

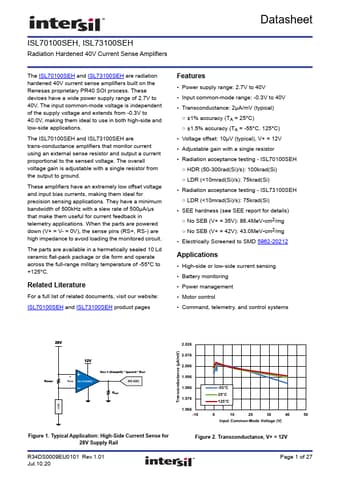

ISL73100SEH Datasheet Preview Page 2 ISL73100SEH Datasheet Preview Page 3
