ISL73847M Datasheet - Intersil

ISL73847M PWM Controller

ISL73847M Radiation Tolerant Single/Dual-Phase Current Mode PWM Controller Datasheet The ISL73847M is a synchronous buck controller that can operate as a single or dual-phase controller. It works with the ISL71441M (half-bridge GaN FET driver) to generate point-of-load voltage rails for commercial space applications. It accepts an input voltage range of 4.5V to 19V with a programmable PWM output switching frequency between 250kHz and 1.5MHz with a single resistor. The output can regulate a vol.

ISL73847M Features

* a tri-level output that provides excellent protection against faults by driving a mid scale voltage to signal the power stage to enter a Hi-Z condition. The ISL73847M operates across the military temperature range from -55°C to +125°C and is available in a 24 Ld WSOIC plastic package. Applications ▪

ISL73847M Datasheet (2.57 MB)

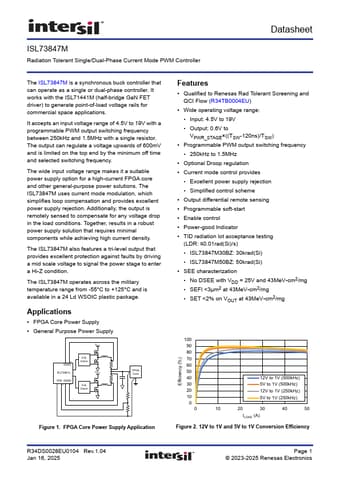

Preview of ISL73847M PDF

Datasheet Details

Part number:

ISL73847M

Manufacturer:

Intersil

File Size:

2.57 MB

Description:

Pwm controller.
