MSB35G, MSB35B - BRIDGE RECTIFIER

Name: MSB35G
SKU: MSB35G-1584295

JESTEK

📥 Download Datasheet

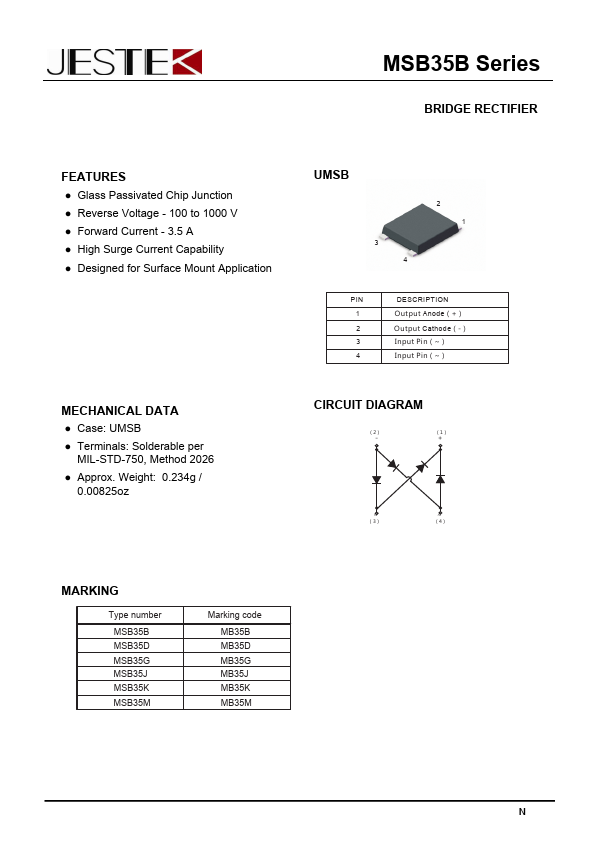

MSB35G Datasheet Preview — This datasheet PDF includes multiple part numbers: MSB35G, MSB35B. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	MSB35G, MSB35B
Manufacturer	JESTEK
File Size	1.75 MB
Description	BRIDGE RECTIFIER
Datasheet	MSB35B-JESTEK.pdf
Note	This datasheet PDF includes multiple part numbers: MSB35G, MSB35B. Please refer to the document for exact specifications by model.

MSB35G Product details

Description

1 Output Anode（+） 2 Output Cathode（-） 3 Input Pin（~） 4 Input Pin（~） MECHANICAL DATA Case: UMSB Terminals: Solderable per MIL-STD-750, Method 2026 Approx.

Features

Glass Passivated Chip Junction.
Reverse Voltage - 100 to 1000 V.
Forward Current - 3.5 A.
High Surge Current Capability.
Designed for Surface Mount.
