MSB35J - BRIDGE RECTIFIER

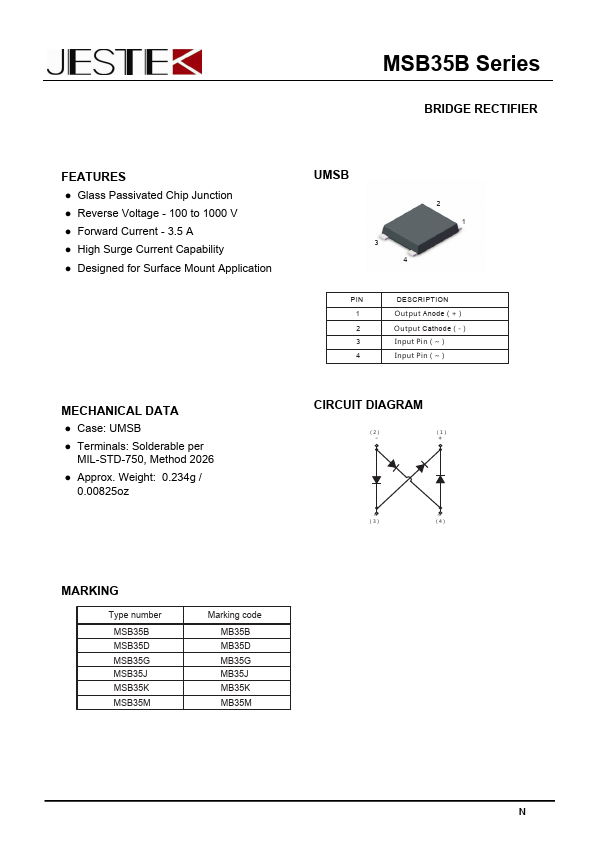

1 Output Anode（+） 2 Output Cathode（-） 3 Input Pin（~） 4 Input Pin（~） MECHANICAL DATA * Case: UMSB * Terminals: Solderable per MIL-STD-750, Method 2026 * Approx.

Weight: 0.234g / 0.00825oz CIRCUIT DIAGRAM （2） - （1） + ~ （3） ~ （4） MARKING Type number MSB35B MSB35D MSB35G MSB35

MSB35B-JESTEK.pdf

MSB35J Datasheet Preview — This datasheet PDF includes multiple part numbers: MSB35J, MSB35B. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MSB35J, MSB35B

Manufacturer:

JESTEK

File Size:

1.75 MB

Description:

Bridge rectifier.

Note:

This datasheet PDF includes multiple part numbers: MSB35J, MSB35B.
Please refer to the document for exact specifications by model.
