MSB35M, MSB35B BRIDGE RECTIFIER

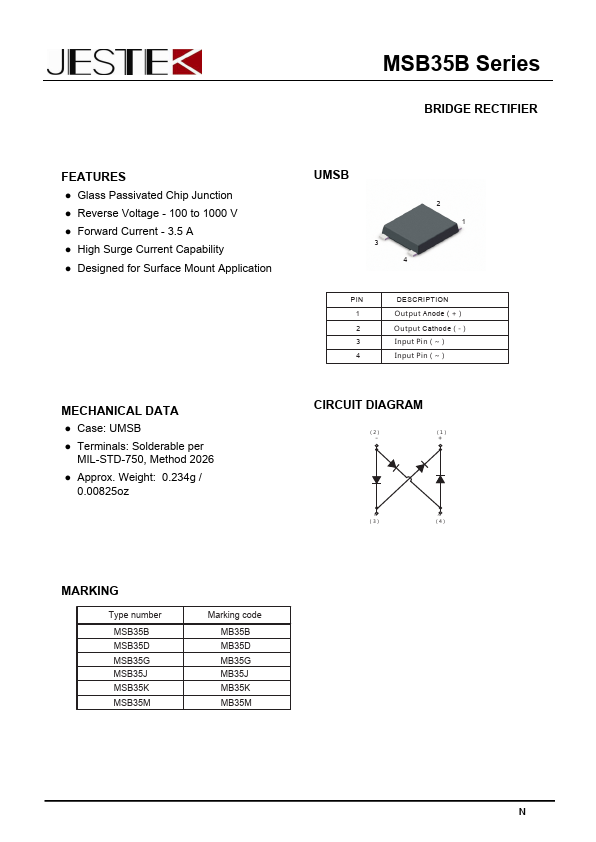

📥 Download Datasheet Datasheet Preview Page 1

Description

MSB35B Series BRIDGE RECTIFIER .
1 Output Anode（+） 2 Output Cathode（-） 3 Input Pin（~） 4 Input Pin（~） MECHANICAL DATA. Case: UMSB. Terminals: Solderable per MIL-STD-.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MSB35M, MSB35B. Please refer to the document for exact specifications by model.

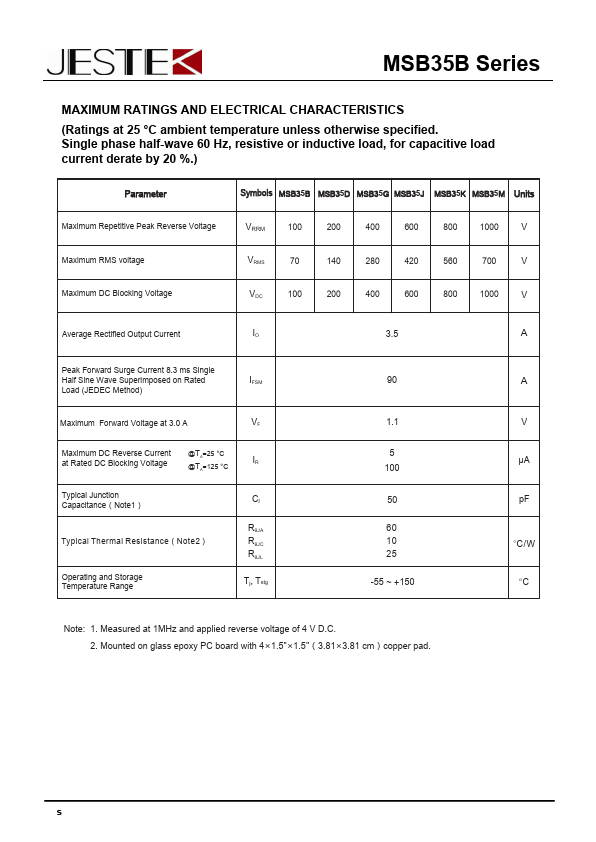

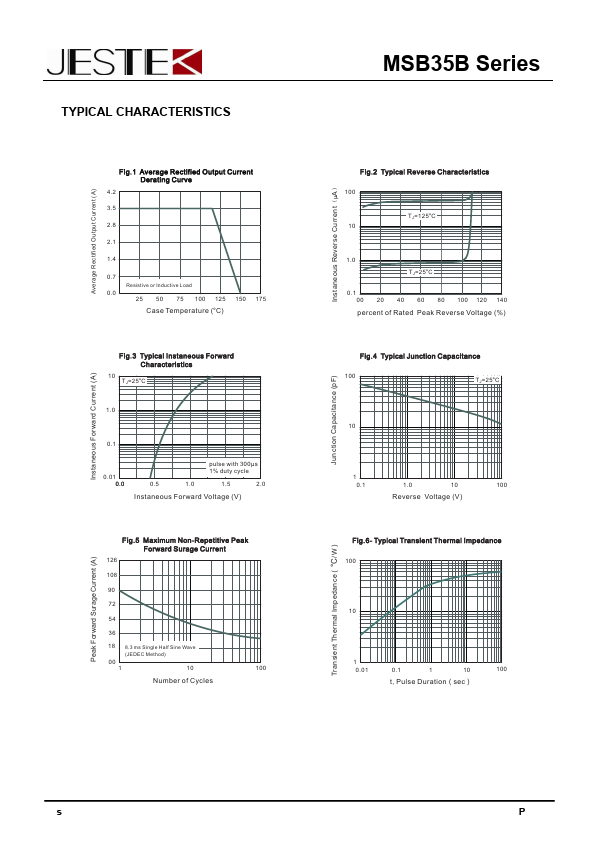

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
MSB35M, MSB35B
Manufacturer
JESTEK
File Size
1.75 MB
Datasheet
MSB35B-JESTEK.pdf
Description
BRIDGE RECTIFIER
Note
This datasheet PDF includes multiple part numbers: MSB35M, MSB35B.
Please refer to the document for exact specifications by model.

Features

* Glass Passivated Chip Junction
* Reverse Voltage - 100 to 1000 V
* Forward Current - 3.5 A
* High Surge Current Capability
