GS3BB, GS3AB GENERAL PURPOSE RECTIFIER

JIEJIE

Description

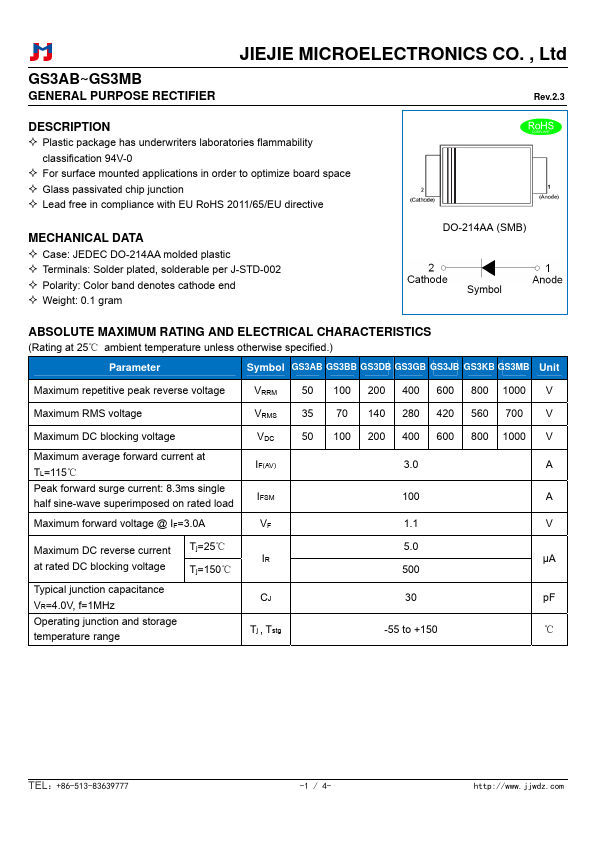

GS3AB~GS3MB GENERAL PURPOSE RECTIFIER JIEJIE MICROELECTRONICS CO., Ltd Rev.2.3 .
Plastic package has underwriters laboratories flammability classification 94V-0. For surface mounted applications in order to optimize boar.

📥 Download Datasheet

GS3BB Datasheet Preview — This datasheet PDF includes multiple part numbers: GS3BB, GS3AB. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: GS3BB, GS3AB
Manufacturer: JIEJIE
File Size: 206.56 KB
Datasheet: GS3AB-JIEJIE.pdf
Description: GENERAL PURPOSE RECTIFIER
Note: This datasheet PDF includes multiple part numbers: GS3BB, GS3AB.
Please refer to the document for exact specifications by model.

Applications

* in order to optimize board space
* Glass passivated chip junction
* Lead free in compliance with EU RoHS 2011/65/EU directive MECHANICAL DATA

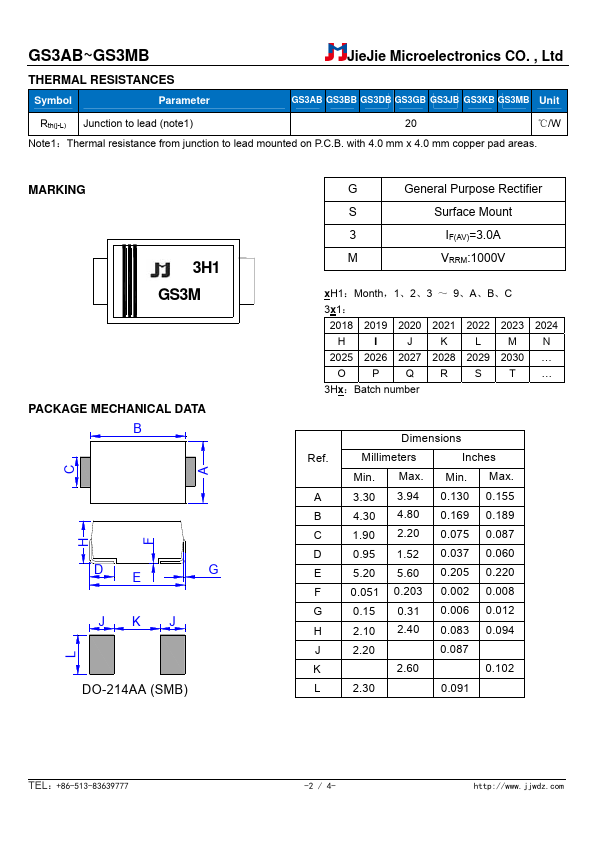

* Case: JEDEC DO-214AA molded plastic
* Terminals: Solder plated, solderable per J-STD-002
* Polarity: Color band denotes cathode end
