GS3AB - GENERAL PURPOSE RECTIFIER

📥 Download Datasheet

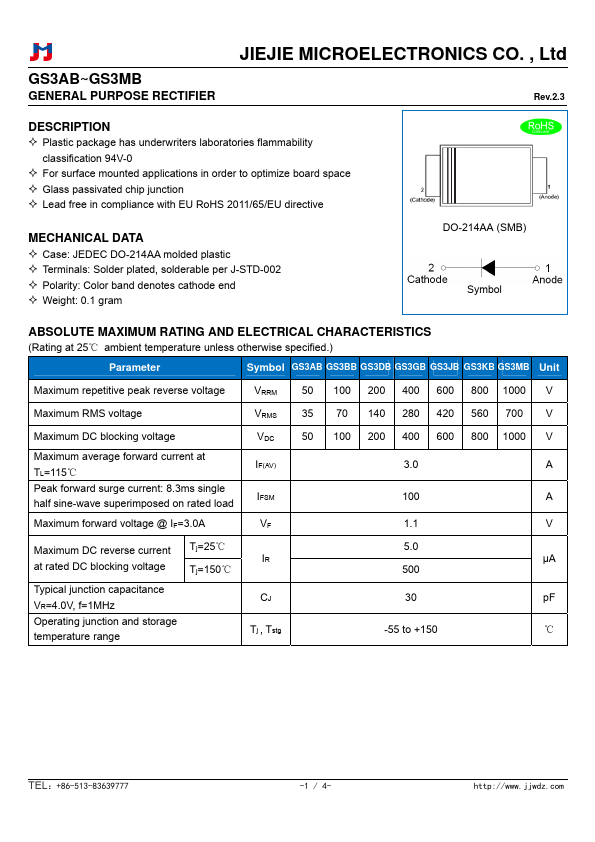

Preview of GS3AB PDF

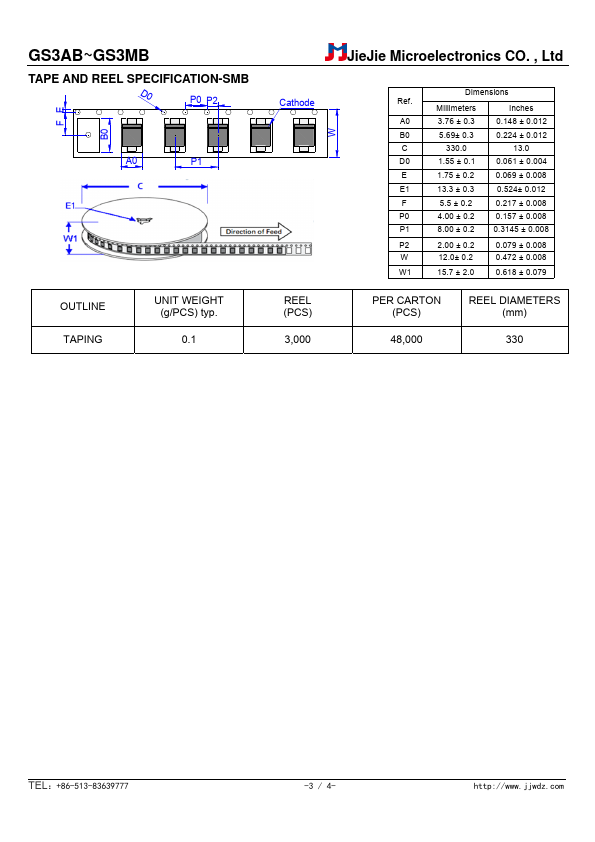

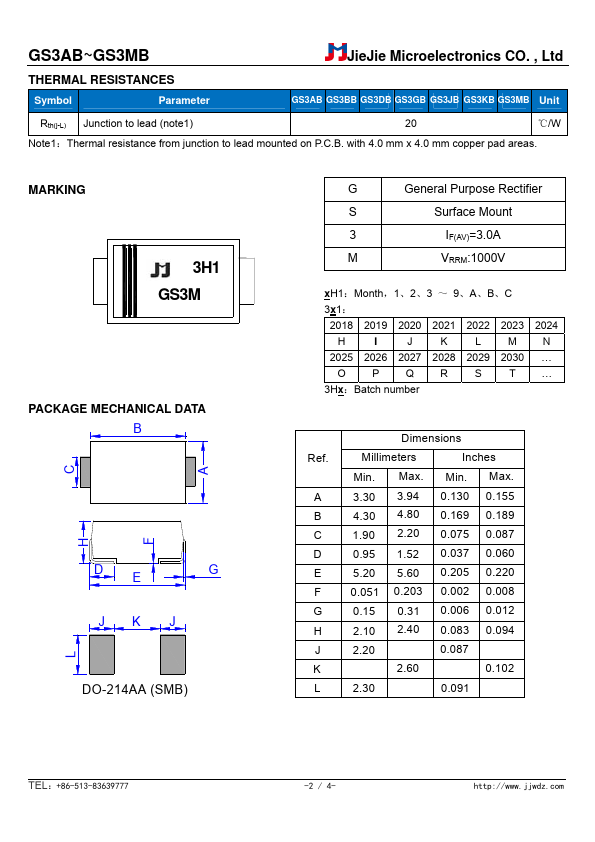

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number GS3AB
Manufacturer JIEJIE
File Size 206.56 KB
Description GENERAL PURPOSE RECTIFIER
Datasheet download datasheet GS3AB-JIEJIE.pdf

GS3AB Product details

Description

Plastic package has underwriters laboratories flammability classification 94V-0 For surface mounted applications in order to optimize board space Glass passivated chip junction Lead free in compliance with EU RoHS 2011/65/EU directive MECHANICAL DATA Case: JEDEC DO-214AA molded plastic Terminals: Solder plated, solderable per J-STD-002 Polarity: Color band denotes cathode end Weight: 0.1 gram DO-214AA (SMB) Symbol ABSOLUTE MAXIMUM RATING AND ELEC
