GS3A

SURFACE MOUNT SILICON RECTIFIER DIODES

GS3A Features

* ! Glass Passivated Die Construction ! Ideally Suited for Automatic Assembly ! Low Forward Voltage Drop ! Low Power Loss ! Built-in Strain Relief    !    P la s tic C a s e M ate rial has U L Fla m m ability

GS3A Datasheet (949.53 KB)

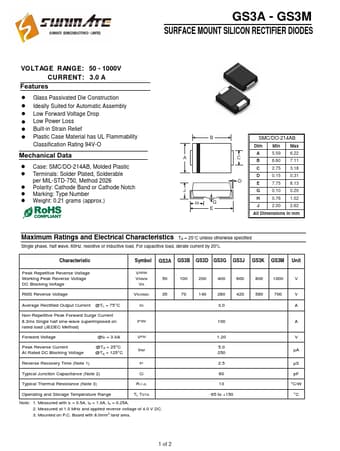

Preview of GS3A PDF

Datasheet Details

Part number:

GS3A

Manufacturer:

Sunmate

File Size:

949.53 KB

Description:

Surface mount silicon rectifier diodes.
