GS5A GENERAL PURPOSE RECTIFIER

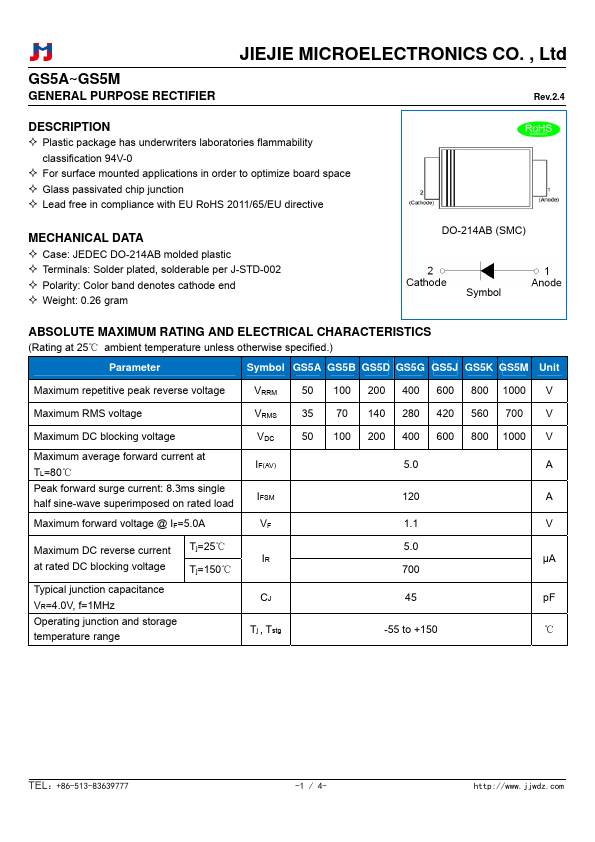

📥 Download Datasheet  Datasheet Preview Page 1

Description

GS5A~GS5M GENERAL PURPOSE RECTIFIER JIEJIE MICROELECTRONICS CO., Ltd Rev.2.4 .
Plastic package has underwriters laboratories flammability classification 94V-0. For surface mounted applications in order to optimize boar.

📥 Download Datasheet

Preview of GS5A PDF

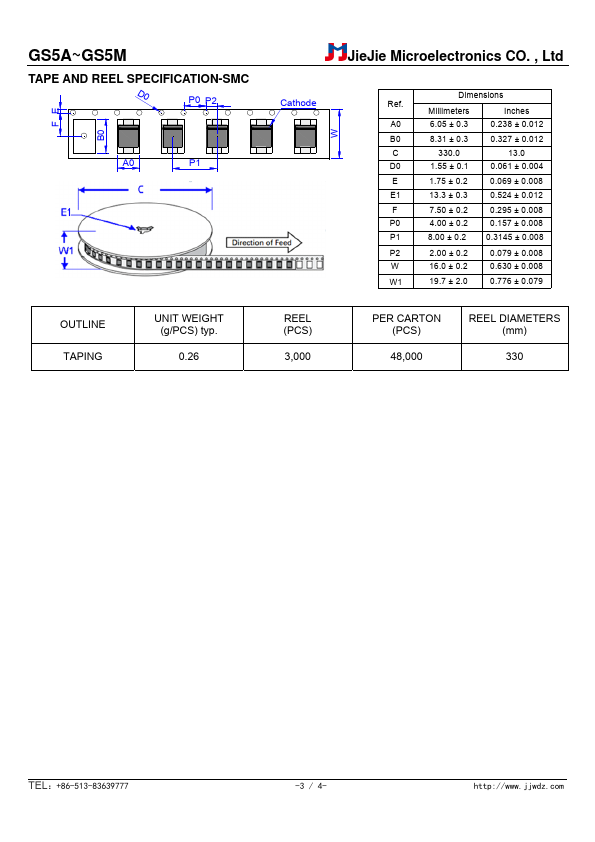

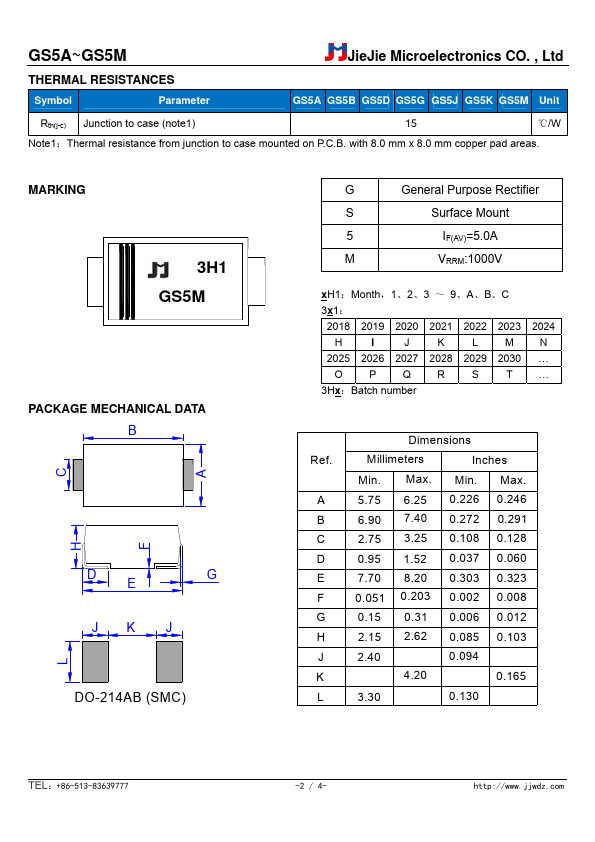

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
GS5A
Manufacturer
JIEJIE
File Size
207.98 KB
Datasheet
GS5A-JIEJIE.pdf
Description
GENERAL PURPOSE RECTIFIER

Applications

* in order to optimize board space
* Glass passivated chip junction
* Lead free in compliance with EU RoHS 2011/65/EU directive MECHANICAL DATA
* Case: JEDEC DO-214AB molded plastic
* Terminals: Solder plated, solderable per J-STD-002
* Polarity: Color band denotes cathode end
