GS5M, GS5A - GENERAL PURPOSE RECTIFIER

GS5M Description

GS5A~GS5M GENERAL PURPOSE RECTIFIER JIEJIE MICROELECTRONICS CO., Ltd Rev.2.4 .
Plastic package has underwriters laboratories flammability classification 94V-0. For surface mounted applications in order to optimize boar.

GS5M Applications

* in order to optimize board space
* Glass passivated chip junction
* Lead free in compliance with EU RoHS 2011/65/EU directive MECHANICAL DATA
* Case: JEDEC DO-214AB molded plastic
* Terminals: Solder plated, solderable per J-STD-002
* Polarity: Color band denotes cathode end

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: GS5M, GS5A. Please refer to the document for exact specifications by model.

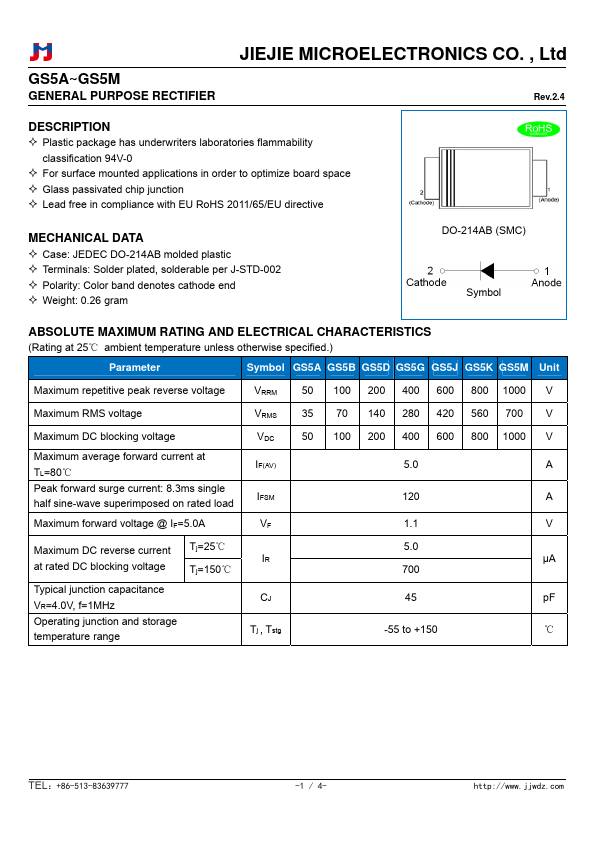

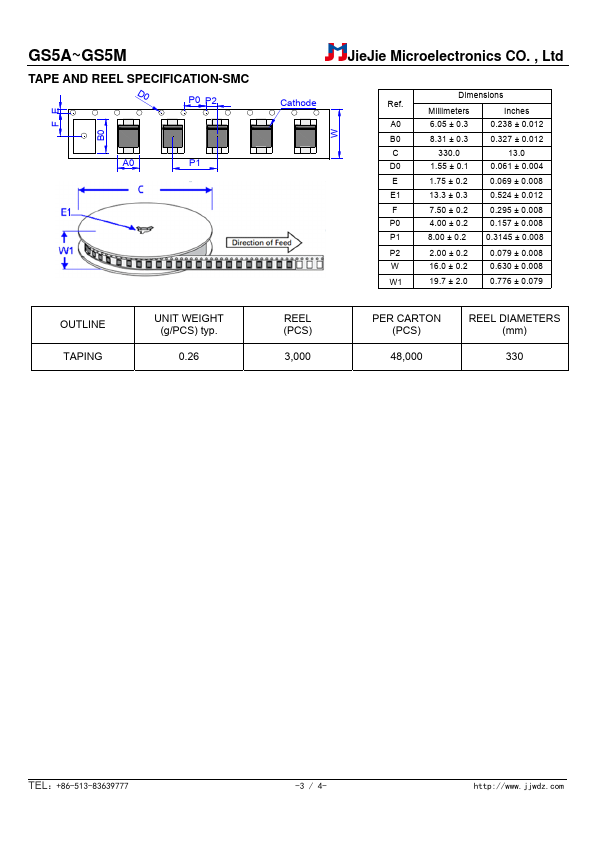

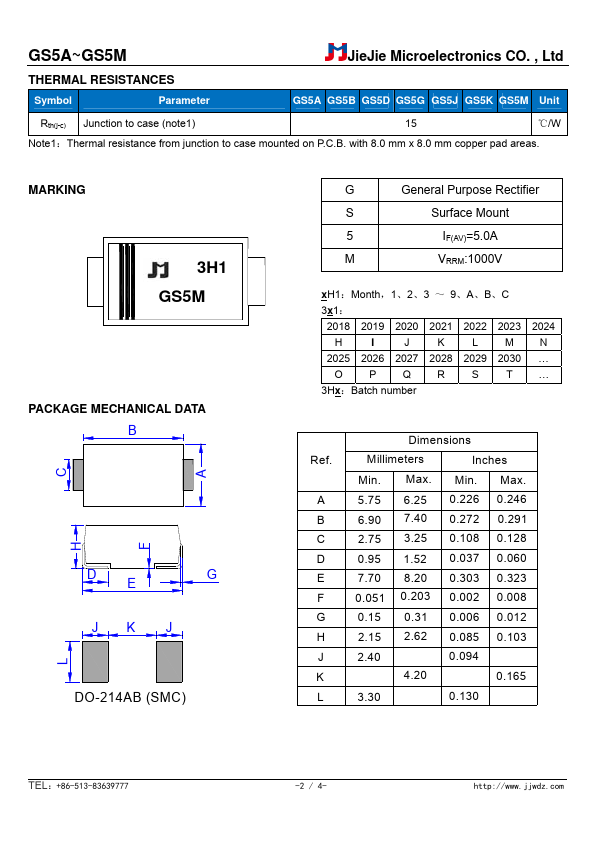

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
GS5M, GS5A
Manufacturer
JIEJIE
File Size
207.98 KB
Datasheet
GS5A-JIEJIE.pdf
Description
GENERAL PURPOSE RECTIFIER
Note
This datasheet PDF includes multiple part numbers: GS5M, GS5A.
Please refer to the document for exact specifications by model.
