GS5MQ, GS5AQ - Surface Mount General Purpose Rectifier

Yangzhou Yangjie

📥 Download Datasheet

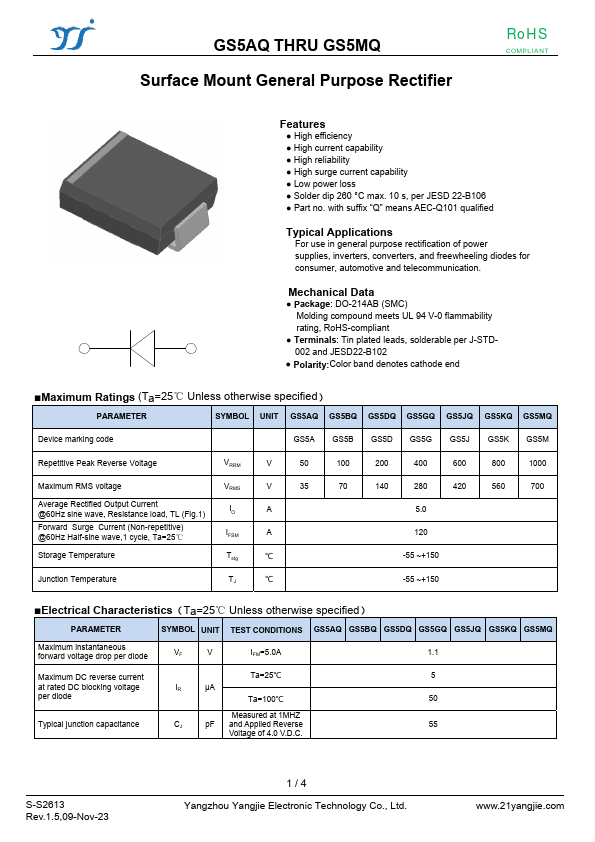

GS5MQ Datasheet Preview — This datasheet PDF includes multiple part numbers: GS5MQ, GS5AQ. Please refer to the document for exact specifications by model.

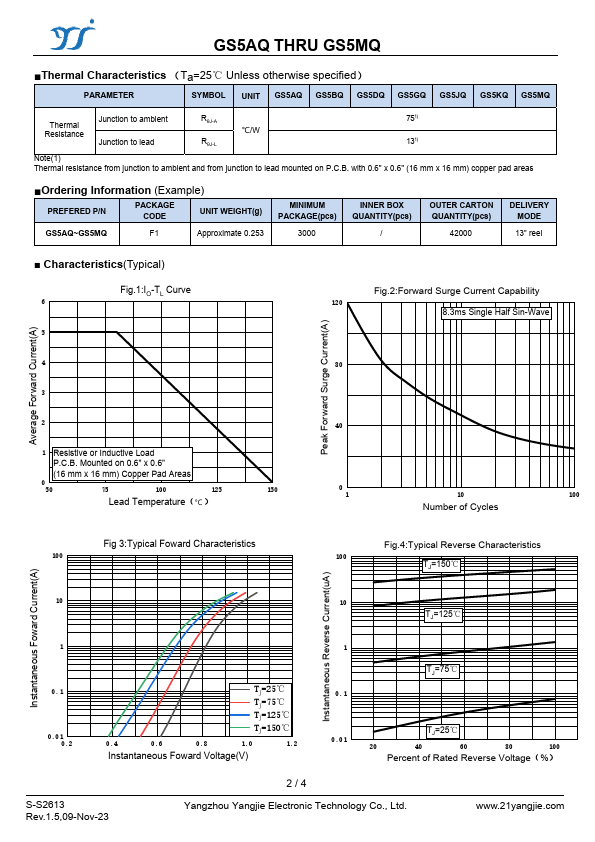

datasheet Preview Page 2

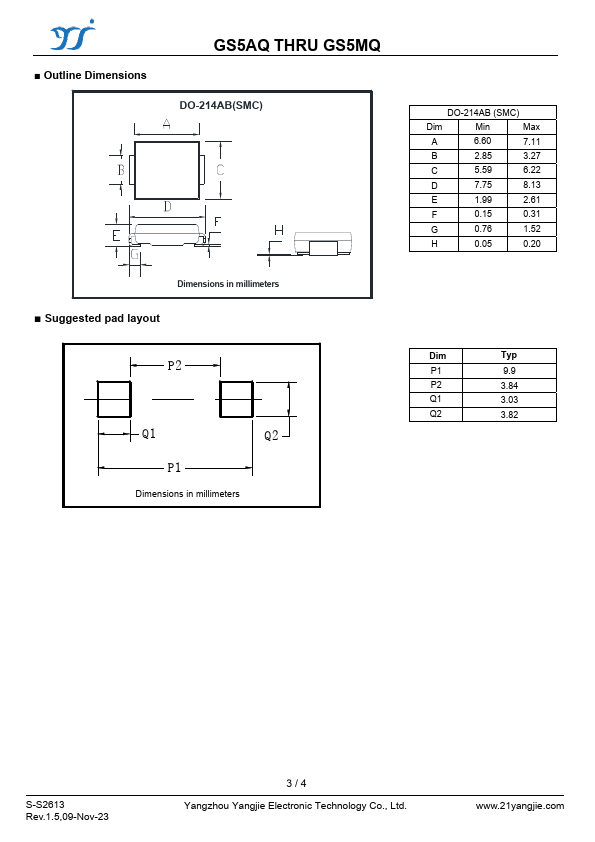

datasheet Preview Page 3

Datasheet Details

Part number: GS5MQ, GS5AQ
Manufacturer: Yangzhou Yangjie
File Size: 244.83 KB
Datasheet: GS5AQ-YangzhouYangjie.pdf
Description: Surface Mount General Purpose Rectifier
Note: This datasheet PDF includes multiple part numbers: GS5MQ, GS5AQ.
Please refer to the document for exact specifications by model.

GS5MQ Product details

Features

High efficiency.
High current capability.
High reliability.
High surge current capability.
Low power loss.
Solder dip 260 °C max. 10 s, per JESD 22-B106.
Part no. with suffix “Q” means AEC-Q101 qualified Typical.
