GS5MB 1000V 5A recovery rectifier

nexperia

Description

SMB GS5MB 1000 V, 5 A recovery rectifier in SMB 20 January 2025 Product data sheet 1.General .
Recovery rectifier, encapsulated in an SMB package. Reverse voltage: VR ≤ 1000 V. Forward current: IF ≤ 5.

📥 Download Datasheet

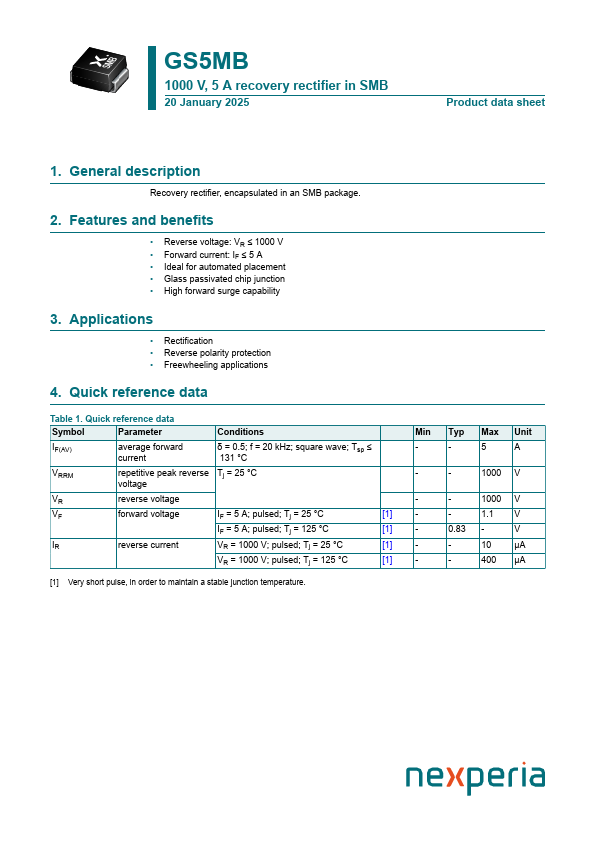

GS5MB Datasheet Preview — Preview of GS5MB PDF

Datasheet Specifications

Part number: GS5MB
Manufacturer: nexperia ↗
File Size: 263.46 KB
Datasheet: GS5MB-nexperia.pdf
Description: 1000V 5A recovery rectifier

Features

* Reverse voltage: VR ≤ 1000 V
* Forward current: IF ≤ 5 A
* Ideal for automated placement
* Glass passivated chip junction

Applications

* Rectification
* Reverse polarity protection
* Freewheeling applications 4. Quick reference data Table 1. Quick reference data Symbol Parameter Conditions IF(AV) average forward current δ = 0.5; f = 20 kHz; square wave; Tsp ≤ 131 °C VRRM repetitive peak reverse Tj
