JCT1255CS, JCT1055 Datasheet - JIEJIE

JCT1255CS - 55A SCRs

JCT1055/1255 series of silicon controlled rectifiers, with high ability to withstand the shock loading of large current, provide high dv/dt rate with strong resistance to electromagnetic interference. They are especially recommended for use on solid state relay, motorcycle, power charger, T-tools .

JCT1255CS Features

* Symbol VDRM/ VRRM IT(RMS) IGT JCT1055 1000V 55A 10 - 50 mA JCT1255 1200V ABSOLUTE MAXIMUM RATINGS Parameter Storage junction temperature range Operating junction temperature range Repetitive peak off-state voltage(Tj=25℃) Repetitive peak reverse voltage(Tj=25℃) Non repetitive surge peak Off-sta

JCT1055-JIEJIE.pdf

This datasheet PDF includes multiple part numbers: JCT1255CS, JCT1055. Please refer to the document for exact specifications by model.

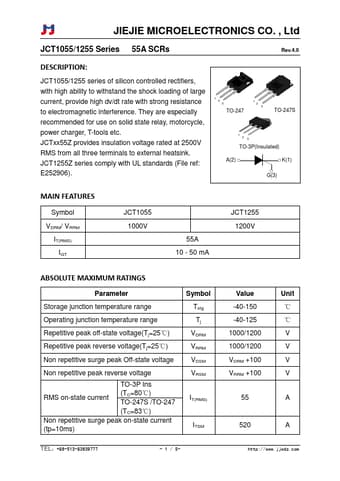

JCT1255CS Datasheet Preview Page 2 JCT1255CS Datasheet Preview Page 3

Datasheet Details

Part number:

JCT1255CS, JCT1055

Manufacturer:

JIEJIE

File Size:

410.28 KB

Description:

55a scrs.

Note:

This datasheet PDF includes multiple part numbers: JCT1255CS, JCT1055.
Please refer to the document for exact specifications by model.
