JCT1255Z, JCT1055, 55A SCRs

JIEJIE MICROELECTRONICS CO., Ltd JCT1055/1255 Series 55A SCRs Rev.4.0 .
JCT1055/1255 series of silicon controlled rectifiers, with high ability to withstand the shock loading of large current, provide high dv/dt rate wit.

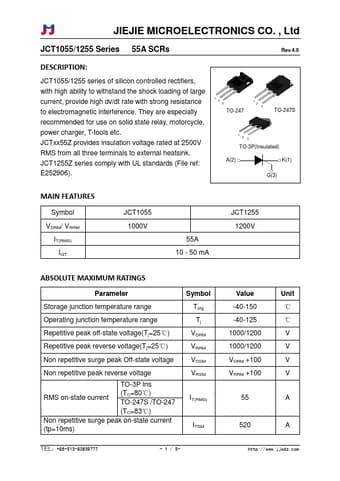

JCT1055-JIEJIE.pdf

JCT1255Z Datasheet Preview — This datasheet PDF includes multiple part numbers: JCT1255Z, JCT1055. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

JCT1255Z, JCT1055

Manufacturer:

JIEJIE

File Size:

410.28 KB

Description:

55A SCRs

Note:

This datasheet PDF includes multiple part numbers: JCT1255Z, JCT1055.
Please refer to the document for exact specifications by model.

Features

* Symbol VDRM/ VRRM IT(RMS) IGT JCT1055 1000V 55A 10 - 50 mA JCT1255 1200V ABSOLUTE MAXIMUM RATINGS Parameter Storage junction temperature range Operating junction temperature range Repetitive peak off-state voltage(Tj=25℃) Repetitive peak reverse voltage(Tj=25℃) Non repetitive surge peak Off-sta
