JX011V, JX011 Sensitive gate SCRs

JIEJIE

Description

JIEJIE MICROELECTRONICS CO., Ltd JX011 Series Sensitive gate SCRs Rev.4.0 .
The JX011 SCR series provide high dv/dt rate with strong resistance to electromagnetic interface.

📥 Download Datasheet

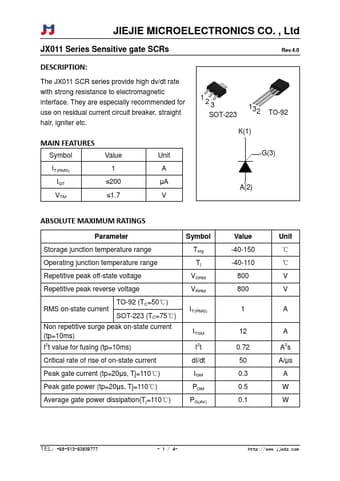

JX011V Datasheet Preview — This datasheet PDF includes multiple part numbers: JX011V, JX011. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: JX011V, JX011
Manufacturer: JIEJIE
File Size: 295.24 KB
Datasheet: JX011-JIEJIE.pdf
Description: Sensitive gate SCRs
Note: This datasheet PDF includes multiple part numbers: JX011V, JX011.
Please refer to the document for exact specifications by model.

Features

* Symbol IT(RMS) IGT VTM Value 1 ≤200 ≤1.7 Unit A μA V 123 SOT-223 132 TO-92 K(1) G(3) A(2) ABSOLUTE MAXIMUM RATINGS Parameter Storage junction temperature range Operating junction temperature range Repetitive peak off-state voltage Repetitive peak reverse voltage TO-92 (TC=50℃) RMS on-state
