JX014CR, JX014 Sensitive gate SCRs

JIEJIE

Description

JIEJIE MICROELECTRONICS CO., Ltd JX014 Series Sensitive gate SCRs Rev.3.0 .
The JX014 SCR series provide high dv/dt rate with strong resistance to electromagnetic interface.

📥 Download Datasheet

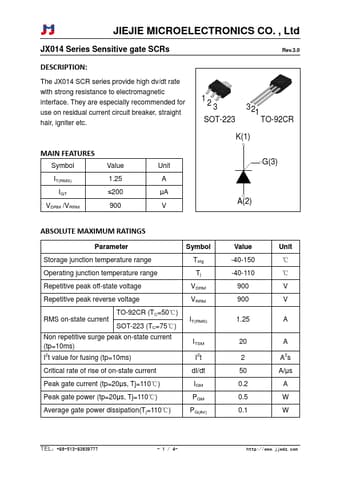

JX014CR Datasheet Preview — This datasheet PDF includes multiple part numbers: JX014CR, JX014. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: JX014CR, JX014
Manufacturer: JIEJIE
File Size: 301.32 KB
Datasheet: JX014-JIEJIE.pdf
Description: Sensitive gate SCRs
Note: This datasheet PDF includes multiple part numbers: JX014CR, JX014.
Please refer to the document for exact specifications by model.

Features

* Symbol IT(RMS) IGT VDRM /VRRM Value 1.25 ≤200 900 Unit A μA V G(3) A(2) ABSOLUTE MAXIMUM RATINGS Parameter Symbol Storage junction temperature range Tstg Operating junction temperature range Tj Repetitive peak off-state voltage Repetitive peak reverse voltage TO-92CR (TC=50℃) RMS on-state
