JX014V, JX014, Sensitive gate SCRs

JIEJIE MICROELECTRONICS CO., Ltd JX014 Series Sensitive gate SCRs Rev.3.0 .
The JX014 SCR series provide high dv/dt rate with strong resistance to electromagnetic interface.

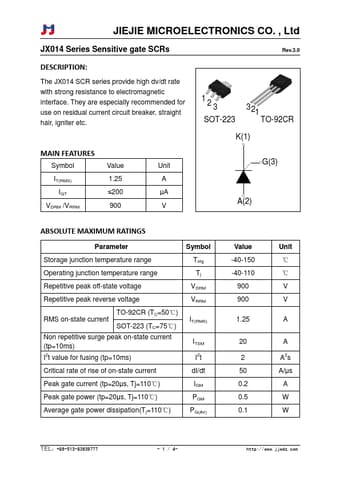

datasheet Preview Page 1 from Datasheet4u.com

JX014-JIEJIE.pdf

JX014V Datasheet Preview — This datasheet PDF includes multiple part numbers: JX014V, JX014. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

JX014V, JX014

Manufacturer:

JIEJIE

File Size:

301.32 KB

Description:

Sensitive gate SCRs

Note:

This datasheet PDF includes multiple part numbers: JX014V, JX014.
Please refer to the document for exact specifications by model.

Features

* Symbol IT(RMS) IGT VDRM /VRRM Value 1.25 ≤200 900 Unit A μA V G(3) A(2) ABSOLUTE MAXIMUM RATINGS Parameter Symbol Storage junction temperature range Tstg Operating junction temperature range Tj Repetitive peak off-state voltage Repetitive peak reverse voltage TO-92CR (TC=50℃) RMS on-state
