JX014 Datasheet, Scrs, JIEJIE

JX014 Features

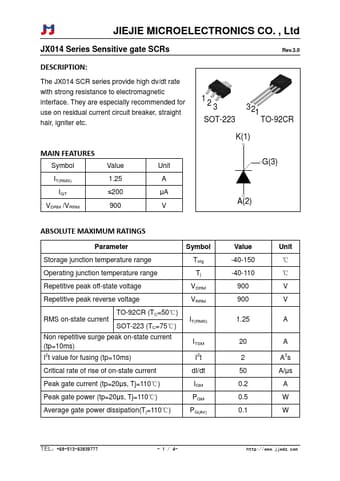

• Scrs Symbol IT(RMS) IGT VDRM /VRRM Value 1.25 ≤200 900 Unit A μA V G(3) A(2) ABSOLUTE MAXIMUM RATINGS Parameter Symbol Storage junction temperature range Tstg Operating junction tem

PDF File Details

Part number:

JX014

Manufacturer:

JIEJIE

File Size:

301.32kb

Download:

📄 Datasheet

Description:

Sensitive gate scrs. The JX014 SCR series provide high dv/dt rate with strong resistance to electromagnetic interface. They are especially recommended fo
