K2200G

Sidac

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor Littelfuse Inc K2200G DIAC/SIDAC 205-230V 1A DO-15 DigiKey 3 5000 units
$0.51

K2200G Datasheet (147.43 KB)

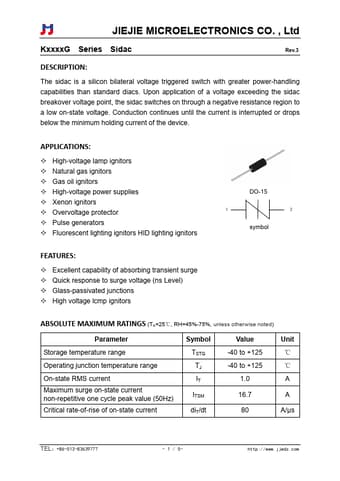

Preview of K2200G PDF Datasheet

Datasheet Details

Part number:

K2200G

Manufacturer:

JIEJIE

File Size:

147.43 KB

Description:

Sidac.

K2200G Features

* Excellent capability of absorbing transient surge

* Quick response to surge voltage (ns Level)

* Glass-passivated junctions

* High voltage lcmp ignitors ABSOLUTE MAXIMUM RATINGS (TA=25ºC, RH=45%-75%, unless otherwise noted) Parameter Symbol Sto

K2200G General Description

The sidac is a silicon bilateral voltage triggered switch with greater power-handling capabilities than standard diacs. Upon application of a voltage exceeding the sidac breakover voltage point, the sidac switches on through a negative resistance region to a low on-state voltage. Conduction continu.
