K2200GHU - High Energy Unidirectional SIDACs

K2200GHU Description

K2xx0yHU Series Teccor® brand Thyristors High Energy Unidirectional SIDACs RoHS Schematic Symbol K A .
The new K2xx0yHU is a higher energy SIDAC switch for gas ignition applications requiring higher current pulse current especially at low repetition rat.

K2200GHU Features

* A C circuit oriented
* T riggering Voltage of 190 to 260V
* 280A Pulse current capability
* RoHS compliant

K2200GHU Applications

* requiring higher current pulse current especially at low repetition rate. It is offered in a DO-15 leaded package and DO-214AA surface mount package. Voltage activation of this solid state switch is accomplished with peak voltage level of 190 to 260Volts. The SIDAC is a silicon bilateral voltage tri

📥 Download Datasheet

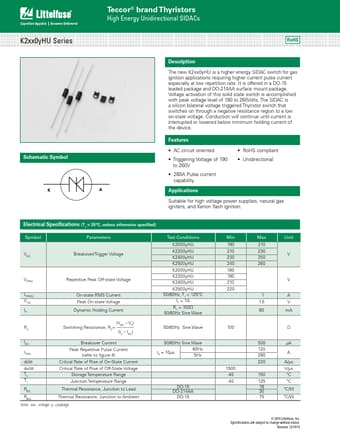

Preview of K2200GHU PDF
datasheet Preview Page 2 datasheet Preview Page 3
