K2200SHU, K2200GHU Datasheet - Littelfuse

K2200SHU High Energy Unidirectional SIDACs

The new K2xx0yHU is a higher energy SIDAC switch for gas ignition applications requiring higher current pulse current especially at low repetition rate. It is offered in a DO-15 leaded package and DO-214AA surface mount package. Voltage activation of this solid state switch is accomplished with peak.

K2200SHU Features

* A C circuit oriented

* T riggering Voltage of 190 to 260V

* 280A Pulse current capability

* RoHS compliant

* Unidirectional Applications Suitable for high voltage power supplies, natural gas igniters, and Xenon flash ignition. Electrical Speci

K2200GHU-Littelfuse.pdf

This datasheet PDF includes multiple part numbers: K2200SHU, K2200GHU. Please refer to the document for exact specifications by model.

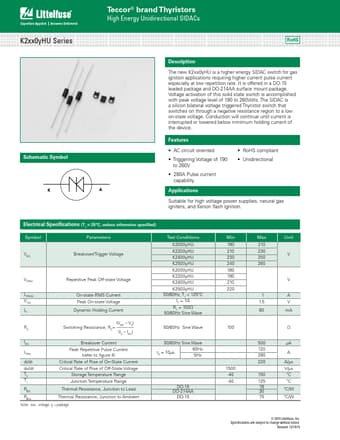

K2200SHU Datasheet Preview Page 2 K2200SHU Datasheet Preview Page 3

Datasheet Details

Part number:

K2200SHU, K2200GHU

Manufacturer:

Littelfuse ↗

File Size:

1.07 MB

Description:

High energy unidirectional sidacs.

Note:

This datasheet PDF includes multiple part numbers: K2200SHU, K2200GHU.
Please refer to the document for exact specifications by model.
