* z High breakdown voltage z High current capability z High switching speed z High reliability z RoHS product ORDER MESSAGE Order codes 3DD13009NL-O-C-N-B 3DD13009NL-O-AN-N-B 3DD13009NL-O-AB-N-B Halogen Free NO NO NO Marking D13009NL D13009NL D13009NL Package TO-220C TO-3PN TO-3PB Pack
3DD13009NL Datasheet (380.08 KB)
3DD13009NL
JILIN SINO-MICROELECTRONICS
380.08 KB
High voltage fast-switching npn power transistor.
R

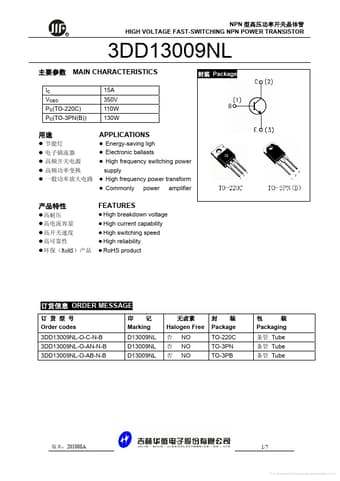

NPN HIGH VOLTAGE FAST-SWITCHING NPN POWER TRANSISTOR
3DD13009NL
IC VCEO PC(TO-220C) PC(TO-3PN(B))
MAIN CHARACTERISTICS
15A 350V 110W 130W
Pac.
