* Low power loss, high efficiency
* High reliability
* RoHS product ORDER MESSAGE - Halogen-Tube DP90C160-GL-B Order codes - - Halogen Free-Tube Halogen-Bag DP90C160-GL-BR N/A - Halogen Free-Bag N/A Marking DP90C160 Package TO-247-2L ：202308C 1/4 ABSOLUTE RATINGS (
DP90C160 Datasheet (480.52 KB)
DP90C160
JILIN SINO
480.52 KB
High voltage rectifier diode.

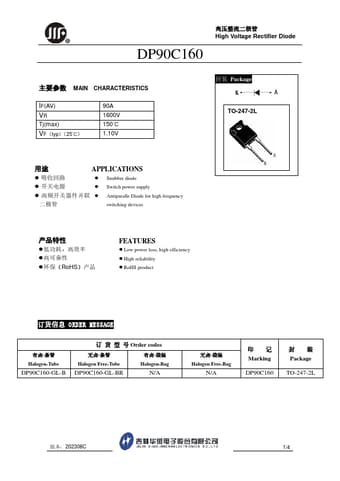

DP90C160
High Voltage Rectifier Diode
MAIN CHARACTERISTICS
IF(AV) VR
Tj(max)
VF（typ）（25℃）
90A 1600V 150℃ 1.10V
Package TO-247-2L
APPLICATIO.
