DP90U18, DP90F18 Datasheet - Voltage Multipliers

DP90U18 Rectifier Diode

www.DataSheet4U.com DPAK Rectifiers - 1,800V 1.0A - 2.0A 50ns - 3000ns Hermetic ELECTRICAL CHARACTERISTICS AND MAXIMUM RATINGS Part Number Working Reverse Voltage (Vrwm) Average Rectified Current (Io) 55°C(1) Volts D P 90F 18 DP90U18 D P 90S 18 1800 1800 1800 Amps 1.0 2.0 2.0 Reverse Current @ Vrwm (Ir) Forward Voltage 1 Cycle Surge Current tp=8.3ms (Ifsm) 25°C Amps 40 40 40 Repetitive Surge Current (Ifrm) 25°C Amps 4 5 5 Reverse Recovery Time (3) (Trr) 25°C ns 50 70 3000 Th.

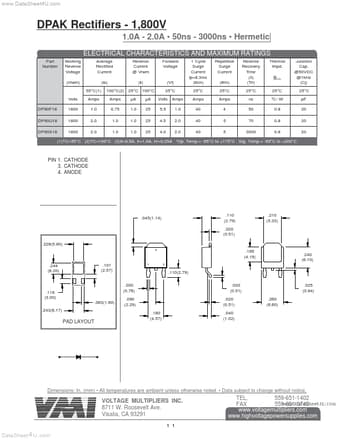

DP90F18_VoltageMultipliers.pdf

DP90U18 Datasheet Preview — This datasheet PDF includes multiple part numbers: DP90U18, DP90F18. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

DP90U18, DP90F18

Manufacturer:

Voltage Multipliers

File Size:

148.16 KB

Description:

Rectifier diode.

Note:

This datasheet PDF includes multiple part numbers: DP90U18, DP90F18.
Please refer to the document for exact specifications by model.
