DP9126IX1 Datasheet, switch equivalent, DP

DP9126IX1 Features

• Switch
• Active PFC for High PF and Low THD
• PF>0.9 with Universal Input
• Built-in HV Startup and IC Power Supply Circuit
• Internal 550V Power MOSFET

PDF File Details

Part number:

DP9126IX1

Manufacturer:

DP

File Size:

1.04MB

Download:

📄 Datasheet

Description:

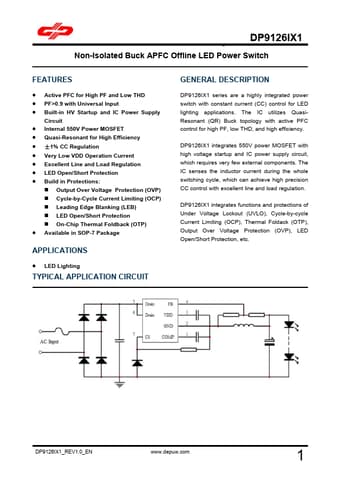

Non-isolated buck apfc offline led power switch. DP9126IX1 series are a highly integrated power switch with constant current (CC) control for LED lighting applications. The IC utiliz

DP9126IX1 Application

• Applications
• LED Lighting TYPICAL APPLICATION CIRCUIT GENERAL DESCRIPTION DP9126IX1 series are a highly integrated power switch with cons
