DP90F18 Datasheet - Voltage Multipliers

DP90F18 Rectifier Diode

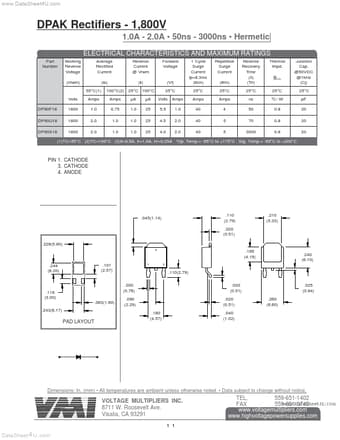

www.DataSheet4U.com DPAK Rectifiers - 1,800V 1.0A - 2.0A 50ns - 3000ns Hermetic ELECTRICAL CHARACTERISTICS AND MAXIMUM RATINGS Part Number Working Reverse Voltage (Vrwm) Average Rectified Current (Io) 55°C(1) Volts D P 90F 18 DP90U18 D P 90S 18 1800 1800 1800 Amps 1.0 2.0 2.0 Reverse Current @ Vrwm (Ir) Forward Voltage 1 Cycle Surge Current tp=8.3ms (Ifsm) 25°C Amps 40 40 40 Repetitive Surge Current (Ifrm) 25°C Amps 4 5 5 Reverse Recovery Time (3) (Trr) 25°C ns 50 70 3000 Th.

DP90F18 Datasheet (148.16 KB)

DP90F18 Datasheet Preview — Preview of DP90F18 PDF

Datasheet Details

Part number:

DP90F18

Manufacturer:

Voltage Multipliers

File Size:

148.16 KB

Description:

Rectifier diode.
