DP9100

Non-Isolated Buck APFC Offline LED Controller

DP9100 Features

* Active PFC for High PF and Low THD

* PF>0.9 with Universal Input

* Built-in HV Startup and IC Power Supply Circuit

* Quasi-Resonant for High Efficiency

* ±1% CC Regulation

* Very Low VDD Operation Current

* Excellent Line and Load Regulation

* LED Open/Short Protect

DP9100 General Description

DP9100 is a highly integrated LED Controller with constant current (CC) control for LED lighting applications. The IC utilizes Quasi-Resonant (QR) Buck topology with active PFC control for high PF, low THD, and high efficiency. DP9100 integrates with high voltage startup and IC power supply circuit,.

DP9100 Datasheet (1.16 MB)

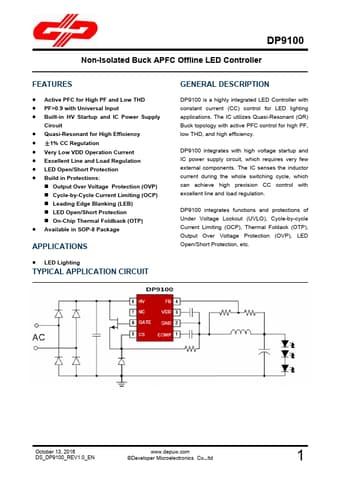

Preview of DP9100 PDF

Datasheet Details

Part number:

DP9100

Manufacturer:

DP

File Size:

1.16 MB

Description:

Non-isolated buck apfc offline led controller.
