DP9126X Non-Isolated Buck APFC Offline LED Power Switch

DP9126X series are a highly integrated power switch with constant current (CC) control for LED lighting applications. The IC utilizes QuasiResonant (QR) Buck topology with active PFC control for high PF, low THD, and high efficiency. DP9126X integrates 500V power MOSFET with high voltage startup a.

DP9126X Features

* Active PFC for High PF and Low THD

* PF>0.9 with Universal Input

* Built-in HV Startup and IC Power Supply Circuit

* Internal 500V Power MOSFET

* Quasi-Resonant for High Efficiency

* ±1% CC Regulation

* Very Low VDD Operation Current

* Excellent Line and Load Regula

DP9126X-DP.pdf

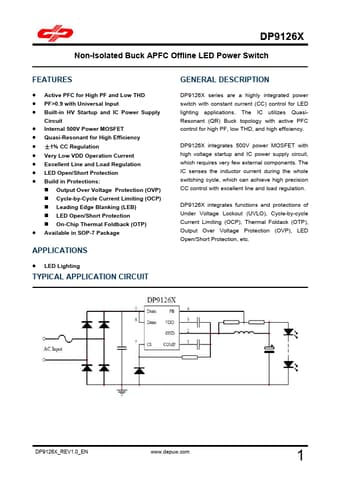

DP9126X Datasheet Preview — Preview of DP9126X PDF

Datasheet Details

Part number:

DP9126X

Manufacturer:

File Size:

1.03 MB

Description:

Non-isolated buck apfc offline led power switch.
